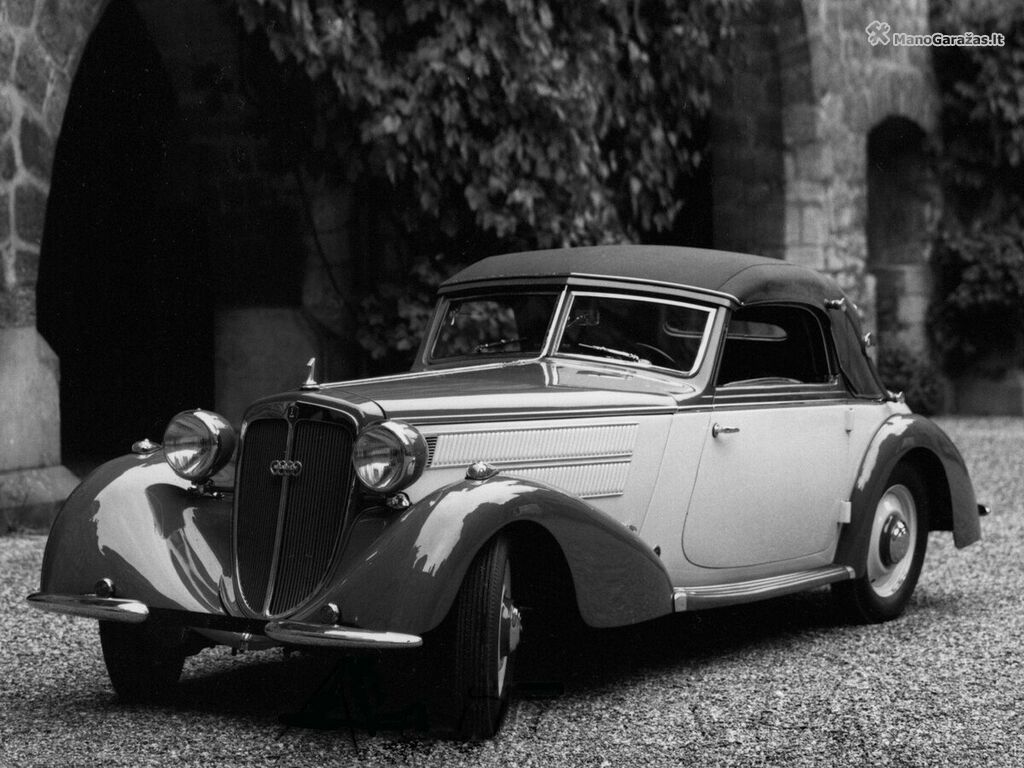

Audi Front UW 225 · Cabrio · 1935–1938
Audi Front UW 225 2.3 MT 50 HP
- Power
- 50 hp · 37 kW
- Top speed
- 105 km/h
Consumption and performance
- Top speed
- 105 km/h
Engine
- Engine type
- Gasoline
- Displacement
- 2,257 cm³
- Max power
- 37 kW / 50 hp
- Fuel system
- Carburetor
- Turbo
- No
- Engine position
- In front
- Cylinders
- 6
- Valves per cylinder
- 2
- Valvetrain
- OHV
- Bore
- 71 mm
- Stroke
- 95 mm
Transmission
- Drive
- Front
- Gearbox
- Manual
- Gears
- 3
Dimensions and capacity
- Body type
- Cabrio
- Doors
- 2
- Seats
- 2
- Length
- 4,500 mm
- Width
- 1,650 mm
- Height
- 1,575 mm
- Wheelbase
- 3,100 mm
- Front track
- 1,350 mm
- Rear track
- 1,400 mm
- Kerb weight
- 1,325 kg
Wheels, brakes and chassis
- Front brakes
- Drums
- Rear brakes
- Drums
