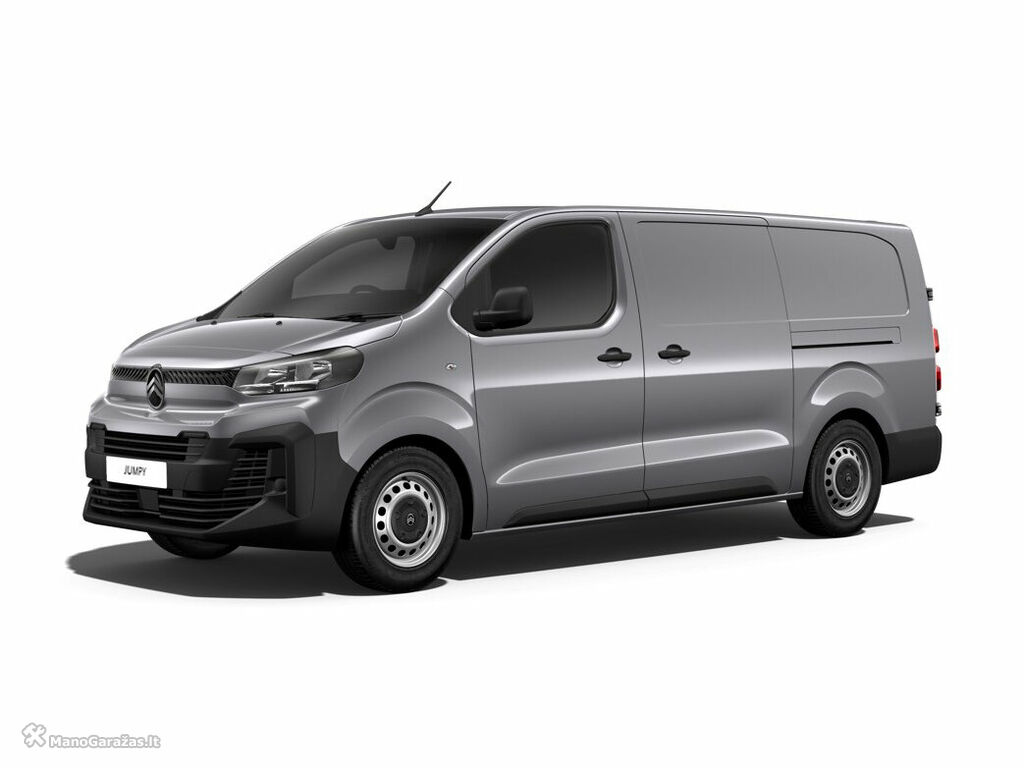

Citroen Jumpy III Facelift Van XL All photos (6)
Citroen Jumpy III Facelift · Van XL · from 2024

Citroen Jumpy XL 2.0 AT 177 HP

DieselAutomatic, 8 gearsFront driveEuro 6
Power
177 hp · 130 kW
Torque
400 Nm
Top speed
185 km/h
Fuel consumption
7.4 l/100 km
On a full tank
~930 km
Other versions of this body · 6
XL 1.5 MT 120 HP XL 2.0 AT 144 HP XL 2.0 AT 177 HP XL 2.0 MT 144 HP XL 75 kWh EV AT 136 HP XL 50 kWh EV AT 136 HP

Consumption and performance

manufacturer data
Top speed
185 km/h
Fuel tank
69 l

Engine

DW10FC · 1,997 cm³
Engine type
Diesel
Engine code
DW10FC
Displacement
1,997 cm³
Max power
130 kW / 177 hp
Torque
400 Nm at 2000 rpm
Fuel system
Diesel, Common rail
Turbo
Turbo
Engine position
In front
Cylinders
4
Valves per cylinder
4
Valvetrain
DOHC
Bore
85 mm
Stroke
88 mm
Compression ratio
16.7
Emission standard
Euro 6
CO₂ emissions
194 g/km

Transmission

Drive
Front
Gearbox
Automatic
Gears
8

Dimensions and capacity

Body type
Van
Doors
4
Seats
2, 3
Length
5,333 mm
Width
1,920 mm
Width incl. mirrors
2,204 mm
Height
1,935 mm
Wheelbase
3,275 mm
Front track
1,627 mm
Rear track
1,600 mm
Kerb weight
1,793 kg
Turning circle
12.4 m

Wheels, brakes and chassis

Front brakes
Ventilated discs
Rear brakes
Discs
Front suspension
Independent, coil spring
Rear suspension
Independent, coil spring

Electric / hybrid

Test cycle
WLTP
