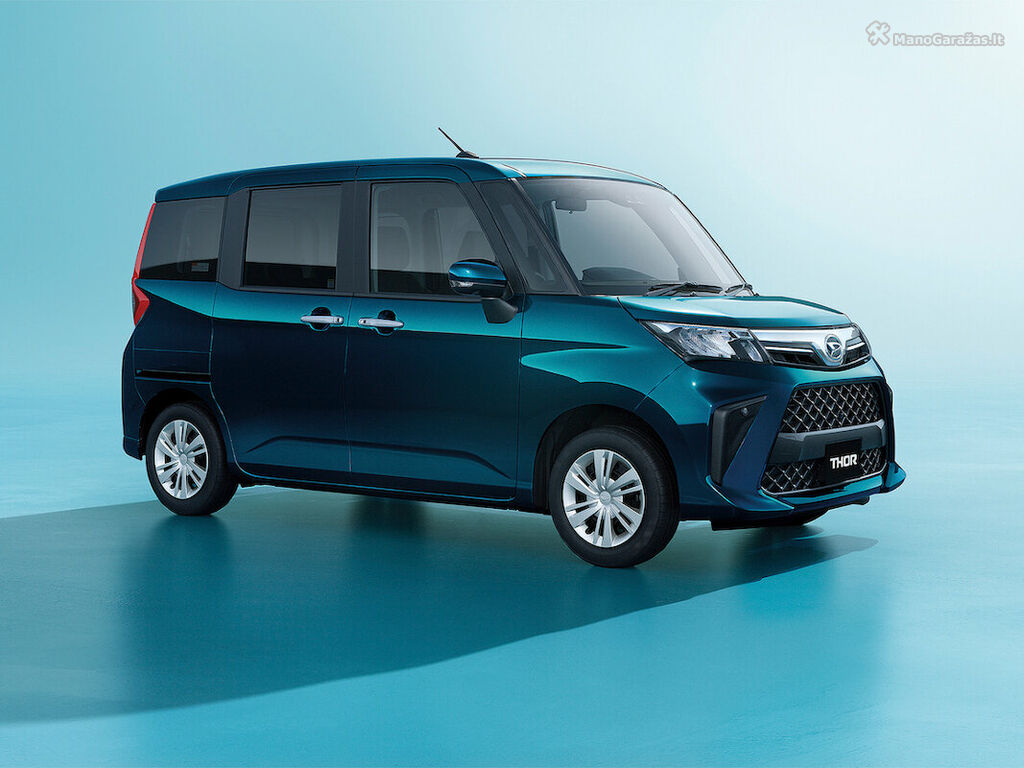

Daihatsu Thor I I Facelift Minivan All photos (3)
Daihatsu Thor I I Facelift · Minivan · from 2020

Daihatsu Thor I 1.0 CVT 98 HP

GasolineVariatorFront drive
Power
98 hp · 72 kW
Torque
140 Nm
Fuel consumption
6.0 l/100 km
On a full tank
~600 km
Other versions of this body · 3
1.0 CVT 69 HP 1.0 CVT 69 HP AWD 1.0 CVT 98 HP

Consumption and performance

manufacturer data
Fuel tank
36 l

Engine

1KR-VET · 996 cm³
Engine type
Gasoline
Engine code
1KR-VET
Displacement
996 cm³
Max power
72 kW / 98 hp
Torque
140 Nm at 2400 rpm
Fuel
A92
Fuel system
Multipoint injection
Turbo
Turbo
Engine position
In front
Cylinders
3
Valves per cylinder
4
Valvetrain
DOHC
Bore
71 mm
Stroke
83.9 mm
Compression ratio
9.5

Transmission

Drive
Front
Gearbox
Variator

Dimensions and capacity

class M
Body type
Minivan
Doors
5
Seats
5
Length
3,700 mm
Width
1,670 mm
Height
1,735 mm
Wheelbase
2,490 mm
Front track
1,465 mm
Rear track
1,475 mm
Ground clearance
130 mm
Kerb weight
1,110 kg
Max weight
1,385 kg
Turning circle
9.2 m

Wheels, brakes and chassis

Tyre size
165/65/R14, 175/55/R15
Wheel fitment (PCD, CB)
DIA54.1 4x100
Front brakes
Ventilated discs
Rear brakes
Drums
Front suspension
Independent, coil spring
Rear suspension
Semi-independent, coil spring
