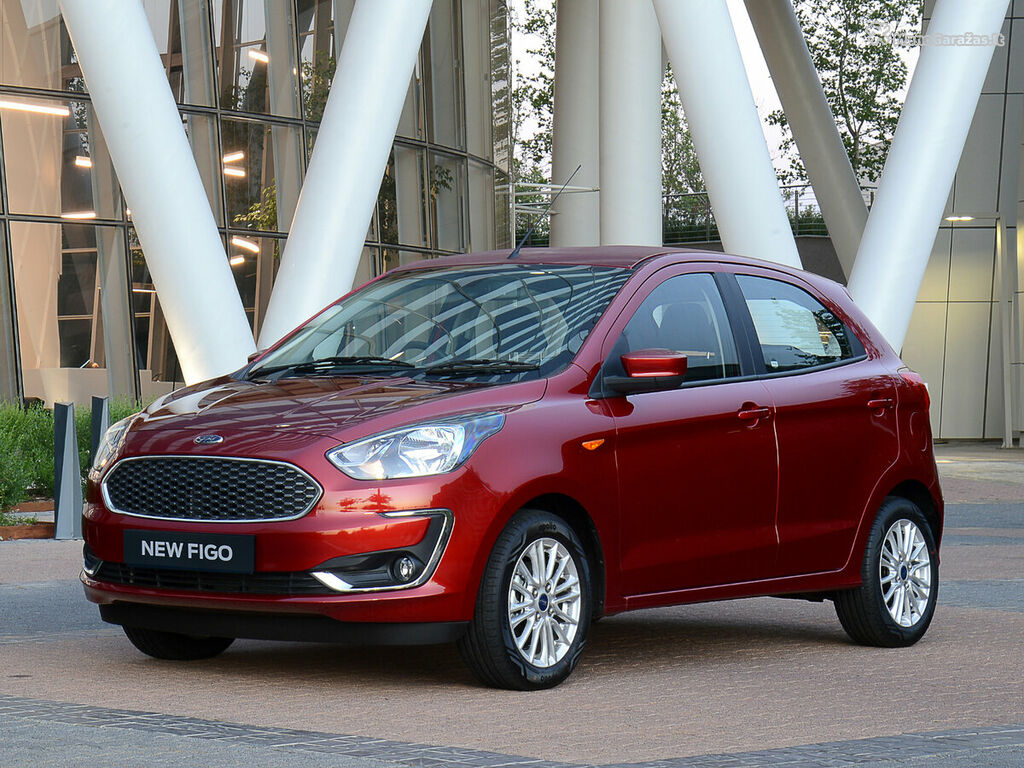

Ford Figo II Facelift Hatchback 5 doors All photos (8)
Ford Figo II Facelift · Hatchback 5 doors · 2018–2021

Ford Figo 1.5 AMT 123 HP

DieselAutomatic, 4 gearsFront driveEuro 3
Power
90 hp · 66 kW
Torque
210 Nm
0–100 km/h
15.2 s
Top speed
176 km/h
Fuel consumption
5.1 l/100 km
On a full tank
~1,080 km
Other versions of this body · 5
1.2 MT 96 HP 1.5 AMT 120 HP 1.5 AMT 123 HP 1.5 MT 100 HP 1.5 MT 120 HP

Consumption and performance

manufacturer data
Top speed
176 km/h
Acceleration 0–100 km/h
15.2 s
Fuel tank
55 l

Engine

AGR · 1,896 cm³
Engine type
Diesel
Engine code
AGR
Displacement
1,896 cm³
Max power
66 kW / 90 hp
Torque
210 Nm at 1900 rpm
Fuel system
Unit injector
Turbo
Turbo
Engine position
In front
Cylinders
4
Valves per cylinder
2
Valvetrain
OHC
Bore
79 mm
Stroke
95.5 mm
Compression ratio
19
Emission standard
Euro 3

Transmission

Drive
Front
Gearbox
Automatic
Gears
4

Dimensions and capacity

Body code 1U5 · class C
Body type
Estate (wagon)
Doors
5
Seats
5
Length
4,511 mm
Width
1,731 mm
Height
1,448 mm
Wheelbase
2,512 mm
Front track
1,516 mm
Rear track
1,492 mm
Ground clearance
140 mm
Max weight
1,305 kg
Boot space (min)
548 l
Boot space (max)
1,512 l

Wheels, brakes and chassis

Tyre size
195/65/R15
Optional tyre sizes
195/65R15, 195/70R14
Wheel fitment (PCD, CB)
DIA57.1 5x100
Front brakes
Ventilated discs
Rear brakes
Drums
Front suspension
Independent, coil spring
Rear suspension
Independent, coil spring
