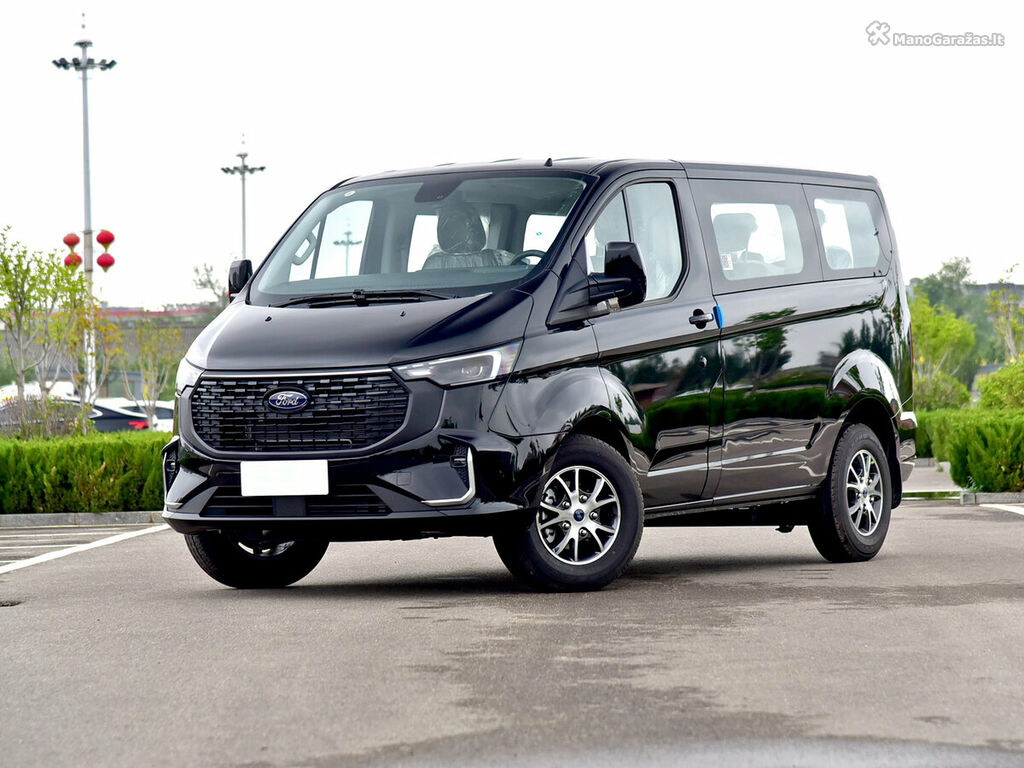

Ford Transit Custom I (China Market) · Minivan SWB · from 2023
Ford Transit Custom SWB 2.0 MT 143 HP
- Power
- 155 hp · 114 kW
- Torque
- 360 Nm
- 0–100 km/h
- 13.4 s
- Top speed
- 172 km/h
- Fuel consumption
- 7.5 l/100 km
- On a full tank
- ~1,000 km
Other versions of this body · 4
Consumption and performance
- Top speed
- 172 km/h
- Acceleration 0–100 km/h
- 13.4 s
- Fuel tank
- 75 l
Engine
- Engine type
- Diesel
- Engine code
- D20DTR
- Displacement
- 1,998 cm³
- Max power
- 114 kW / 155 hp
- Torque
- 360 Nm at 1500 rpm
- Fuel system
- Diesel, Common rail
- Turbo
- Turbo
- Engine position
- In front
- Cylinders
- 4
- Valves per cylinder
- 4
- Valvetrain
- DOHC
- Bore
- 86.2 mm
- Stroke
- 85.6 mm
- Compression ratio
- 16.5
Transmission
- Drive
- All
- Gearbox
- Manual
- Gears
- 6
Dimensions and capacity
- Body type
- Pickup
- Doors
- 4
- Seats
- 5
- Length
- 4,990 mm
- Width
- 1,910 mm
- Height
- 1,790 mm
- Wheelbase
- 3,060 mm
- Front track
- 1,570 mm
- Rear track
- 1,570 mm
- Ground clearance
- 195 mm
- Kerb weight
- 1,860 kg
- Max weight
- 2,740 kg
Wheels, brakes and chassis
- Tyre size
- 225/75/R18
- Optional tyre sizes
- 255/60R18
- Wheel fitment (PCD, CB)
- DIA84.1 5x130
- Wheel fasteners
- Nuts M14x1.5
- Tyre pressure
- 2.3 bar
- Front brakes
- Discs
- Rear brakes
- Discs
- Front suspension
- Independent, coil spring
- Rear suspension
- Independent, coil spring
