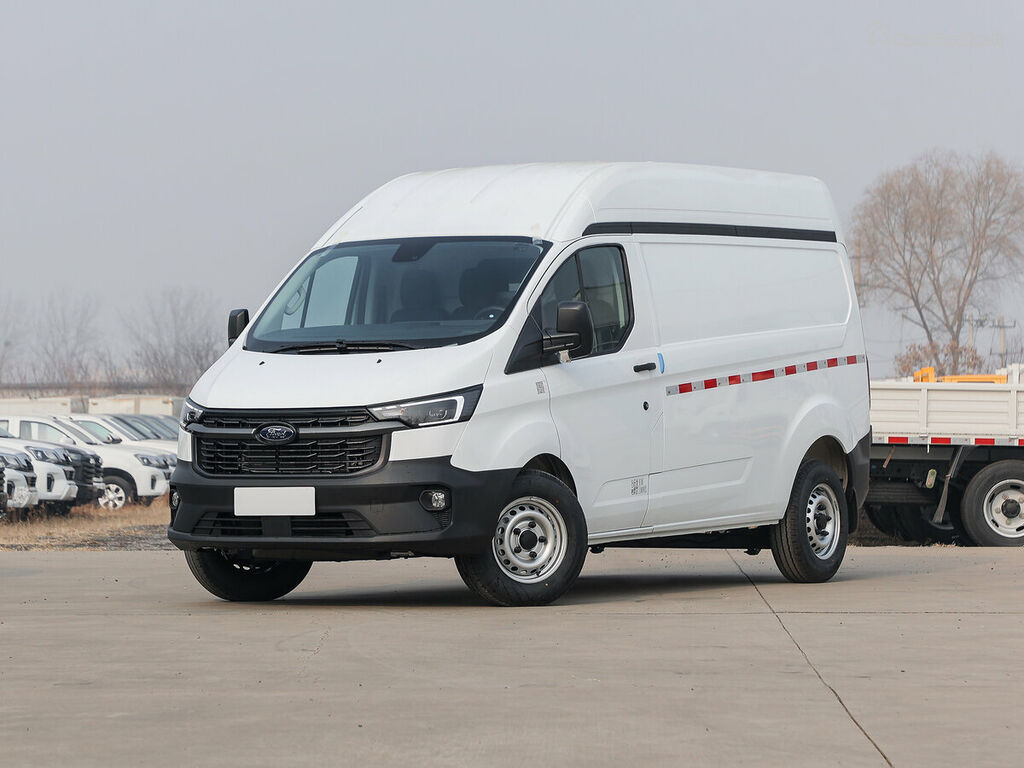

Ford Transit Custom I (China Market) Van LWB All photos (8)
Ford Transit Custom I (China Market) · Van LWB · from 2023

Ford Transit Custom LWB 2.0 MT 143 HP

GasolineAutomatic, 6 gearsRear drive
Power
150 hp · 110 kW
Torque
220 Nm
0–100 km/h
10.5 s
Top speed
170 km/h
Fuel consumption
11.6 l/100 km
On a full tank
~650 km
Other versions of this body · 4
LWB 2.0 AT 143 HP LWB 2.0 AT 220 HP LWB 2.0 MT 143 HP LWB 2.0 MT 220 HP

Consumption and performance

manufacturer data
Top speed
170 km/h
Acceleration 0–100 km/h
10.5 s
Fuel tank
75 l

Engine

G23D · 2,295 cm³
Engine type
Gasoline
Engine code
G23D
Displacement
2,295 cm³
Max power
110 kW / 150 hp
Torque
220 Nm
Fuel
A95
Fuel system
Multipoint injection
Turbo
No
Engine position
In front
Cylinders
4
Valves per cylinder
4
Valvetrain
DOHC
Bore
95.5 mm
Stroke
80.3 mm
Compression ratio
9.7

Transmission

Drive
Rear
Gearbox
Automatic
Gears
6

Dimensions and capacity

Body code DJ · class J
Body type
SUV
Doors
5
Seats
5
Length
4,660 mm
Width
1,880 mm
Height
1,755 mm
Wheelbase
2,740 mm
Front track
1,570 mm
Rear track
1,570 mm
Ground clearance
210 mm
Kerb weight
2,010 kg
Max weight
2,530 kg
Boot space (min)
625 l
Boot space (max)
625 l

Wheels, brakes and chassis

Tyre size
225/70/R16
Wheel fitment (PCD, CB)
DIA84.1 5x130
Wheel fasteners
Nuts M14x1.5
Tyre pressure
2.1 bar
Front brakes
Ventilated discs
Rear brakes
Discs
Front suspension
Independent, coil spring
