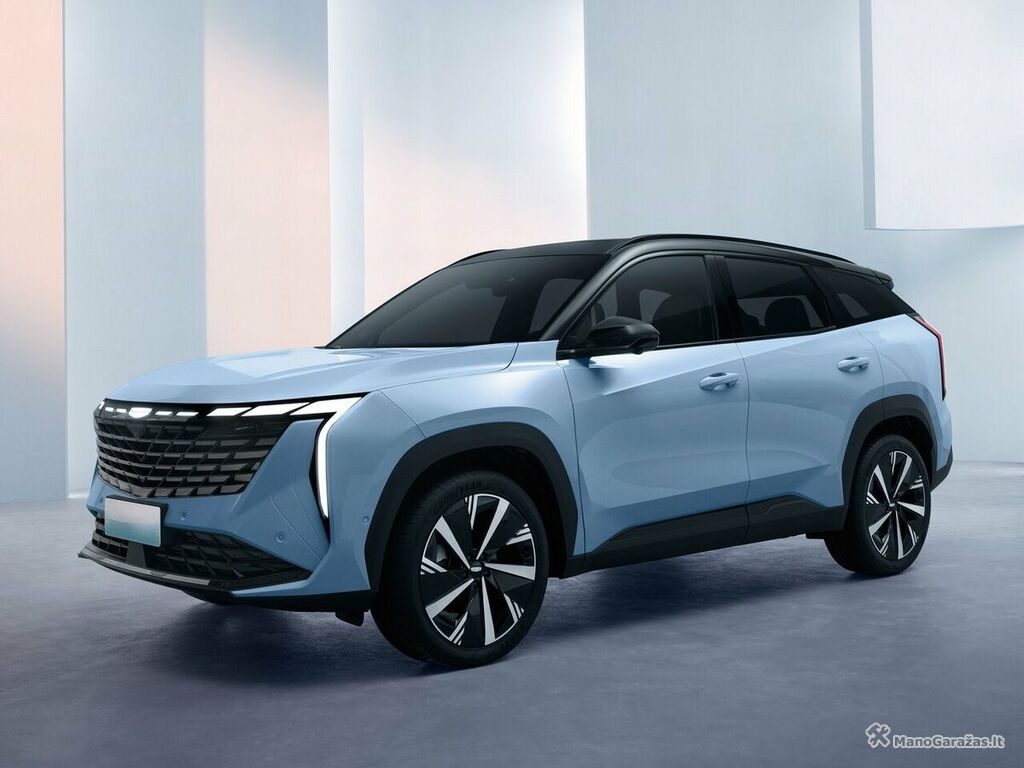

Geely Atlas I II SUV 5 doors All photos (8)
Geely Atlas I II · SUV 5 doors · from 2023

Geely Atlas I 2.0 AT 200 HP AWD

DieselAutomatic, 4 gearsAll drive
Power
163 hp · 120 kW
Torque
345 Nm
0–100 km/h
15.5 s
Top speed
170 km/h
Fuel consumption
9.9 l/100 km
On a full tank
~810 km
Other versions of this body · 6
1.5 AMT 147 HP 1.5 AMT 174 HP 2.0 AMT 200 HP 2.0 AMT 218 HP 2.0 AT 200 HP AWD 2.0 AT 238 HP AWD

Consumption and performance

manufacturer data
Top speed
170 km/h
Acceleration 0–100 km/h
15.5 s
Fuel tank
80 l

Engine

D27DT · 2,696 cm³
Engine type
Diesel
Engine code
D27DT
Displacement
2,696 cm³
Max power
120 kW / 163 hp
Torque
345 Nm at 1800 rpm
Fuel system
Diesel, Common rail
Turbo
Turbo
Engine position
In front
Cylinders
5
Valves per cylinder
2
Valvetrain
SOHC
Bore
86.2 mm
Stroke
92.4 mm
Compression ratio
18

Transmission

Drive
All
Gearbox
Automatic
Gears
4

Dimensions and capacity

class J
Body type
SUV
Doors
5
Seats
5, 7
Length
4,720 mm
Width
1,870 mm
Height
1,760 mm
Wheelbase
2,820 mm
Front track
1,550 mm
Rear track
1,540 mm
Ground clearance
195 mm
Kerb weight
1,815 kg
Max weight
2,550 kg
Boot space (min)
500 l
Boot space (max)
1,920 l

Wheels, brakes and chassis

Tyre size
235/70/R16
Wheel fitment (PCD, CB)
DIA110 6x139.7
Front brakes
Ventilated discs
Rear brakes
Discs
Rear suspension
Independent, coil spring
