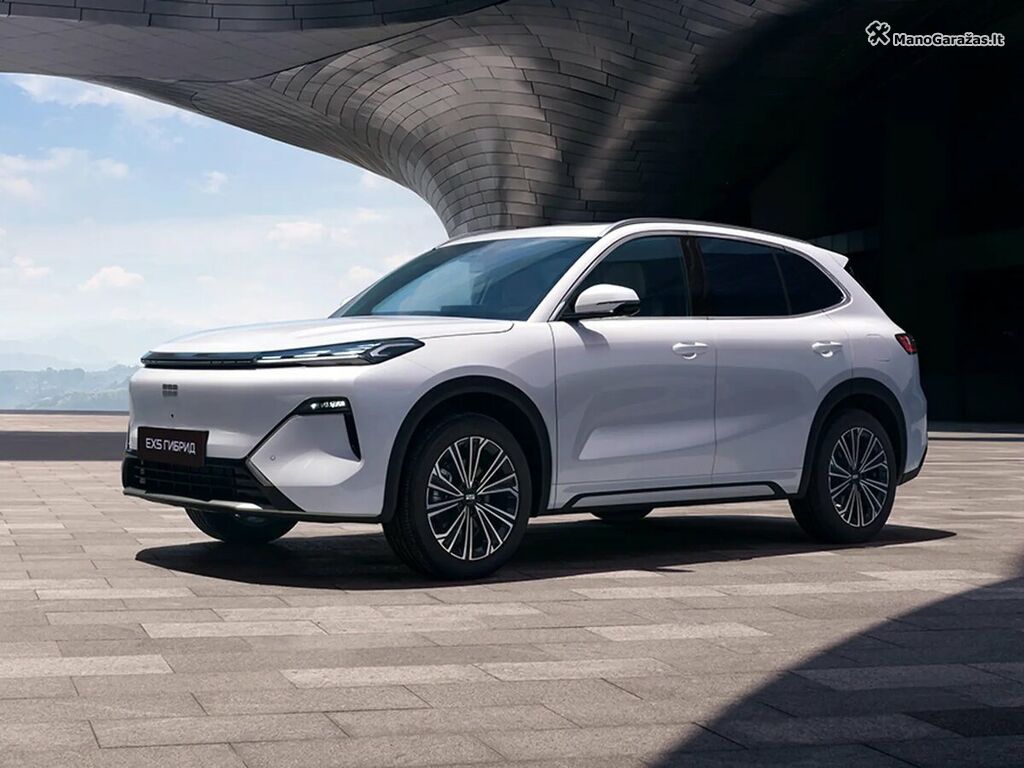

Geely EX5 Гибрид SUV 5 doors All photos (8)
Geely EX5 Гибрид · SUV 5 doors · from 2025

Geely EX5 Гибрид EM-i 1.5 AT 167 HP

Plug-in hybridAutomatic, 1 gearFront driveEuro 6
Power
167 hp · 123 kW
Torque
262 Nm
0–100 km/h
8.1 s
Top speed
170 km/h
Electric range
83 km
Other versions of this body · 2
EM-i 1.5 AT 167 HP EM-R 1.5 AT 68 HP

Consumption and performance

manufacturer data
Top speed
170 km/h
Acceleration 0–100 km/h
8.1 s
Fuel tank
51 l

Engine

BHE15-BFN · 1,499 cm³
Engine type
Plug-in hybrid (PHEV)
Engine code
BHE15-BFN
Displacement
1,499 cm³
Max power
123 kW / 167 hp
Torque
262 Nm
Fuel
A92
Fuel system
Multipoint injection
Turbo
No
Engine position
In front
Cylinders
4
Valves per cylinder
4
Valvetrain
DOHC
Bore
73.4 mm
Stroke
88.6 mm
Compression ratio
13.4
Emission standard
Euro 6

Transmission

Drive
Front
Gearbox
Automatic
Gears
1

Dimensions and capacity

class D
Body type
SUV
Doors
5
Seats
5
Length
4,740 mm
Width
1,905 mm
Height
1,685 mm
Wheelbase
2,755 mm
Front track
1,635 mm
Rear track
1,635 mm
Ground clearance
172 mm
Kerb weight
1,805 kg
Max weight
2,144 kg
Boot space (min)
528 l
Boot space (max)
2,065 l
Turning circle
10.6 m

Wheels, brakes and chassis

Wheel fitment (PCD, CB)
DIA54.1 5x114.3
Wheel fasteners
Nuts M12x1.5
Tyre pressure
2.5 bar
Front brakes
Ventilated discs
Rear brakes
Discs
Front suspension
Independent, coil spring
Rear suspension
Independent, coil spring

Electric / hybrid

Battery capacity
18.4 kWh
Battery type
LFP
Full charge time
3 h (AC wallbox)
Electric range
83 km
Total range
943 km
Max charging power (AC / DC)
6.6 / 30 kW
Fast charging
20 min
Charging ports
Type 2, CCS2
