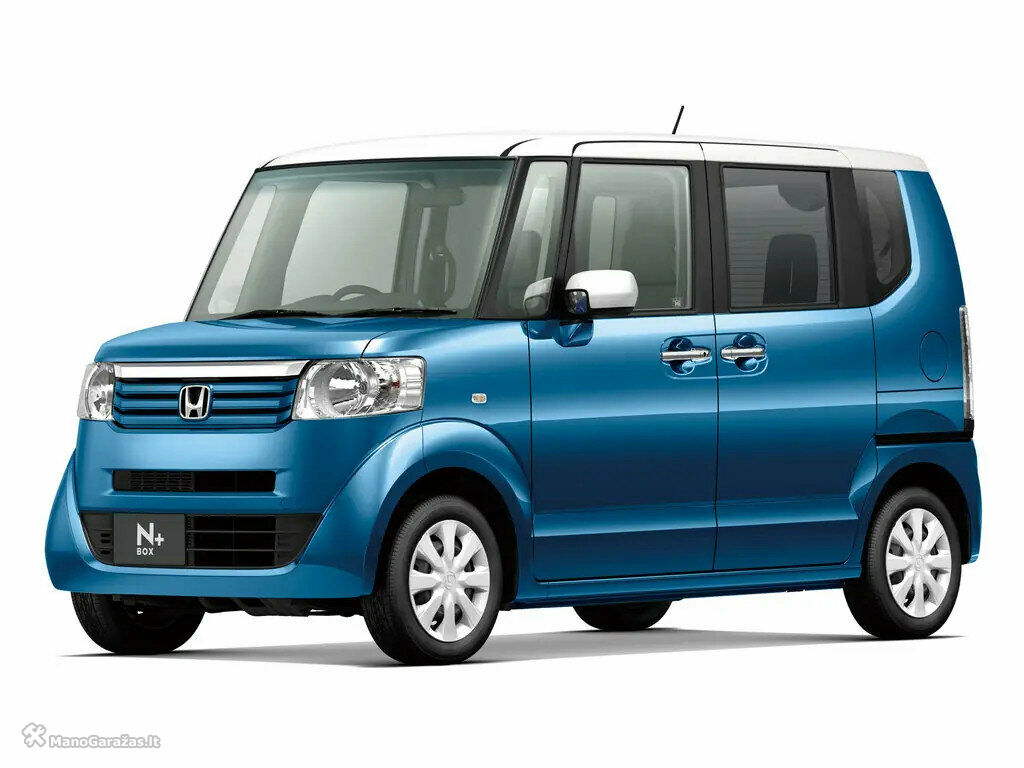

Honda N-BOX+ I Minivan All photos (8)
Honda N-BOX+ I · Minivan · 2012–2015

Honda N-BOX+ 0.7 CVT 58 HP

GasolineManual, 5 gearsFront drive
Power
53 hp · 39 kW
Torque
76 Nm
Fuel consumption
4.2 l/100 km
On a full tank
~710 km
Other versions of this body · 4
0.7 CVT 58 HP 0.7 CVT 58 HP AWD 0.7 CVT 64 HP 0.7 CVT 64 HP AWD

Consumption and performance

manufacturer data
Fuel tank
30 l

Engine

G10A · 993 cm³
Engine type
Gasoline
Engine code
G10A
Displacement
993 cm³
Max power
39 kW / 53 hp
Torque
76 Nm at 3300 rpm
Fuel
A95
Fuel system
Multipoint injection
Turbo
No
Engine position
In front
Cylinders
3
Valves per cylinder
2
Valvetrain
SOHC
Bore
74 mm
Stroke
77 mm
Compression ratio
9.5

Transmission

Drive
Front
Gearbox
Manual
Gears
5

Dimensions and capacity

class E
Body type
Hatchback
Doors
5
Seats
4
Length
3,395 mm
Width
1,475 mm
Height
1,500 mm
Wheelbase
2,360 mm
Front track
1,295 mm
Rear track
1,290 mm
Ground clearance
150 mm

Wheels, brakes and chassis

Optional tyre sizes
155/65R13, 165/55R14
Wheel fitment (PCD, CB)
DIA54.1 4x100
Front brakes
Discs
Front suspension
Independent, coil spring
Rear suspension
Independent
