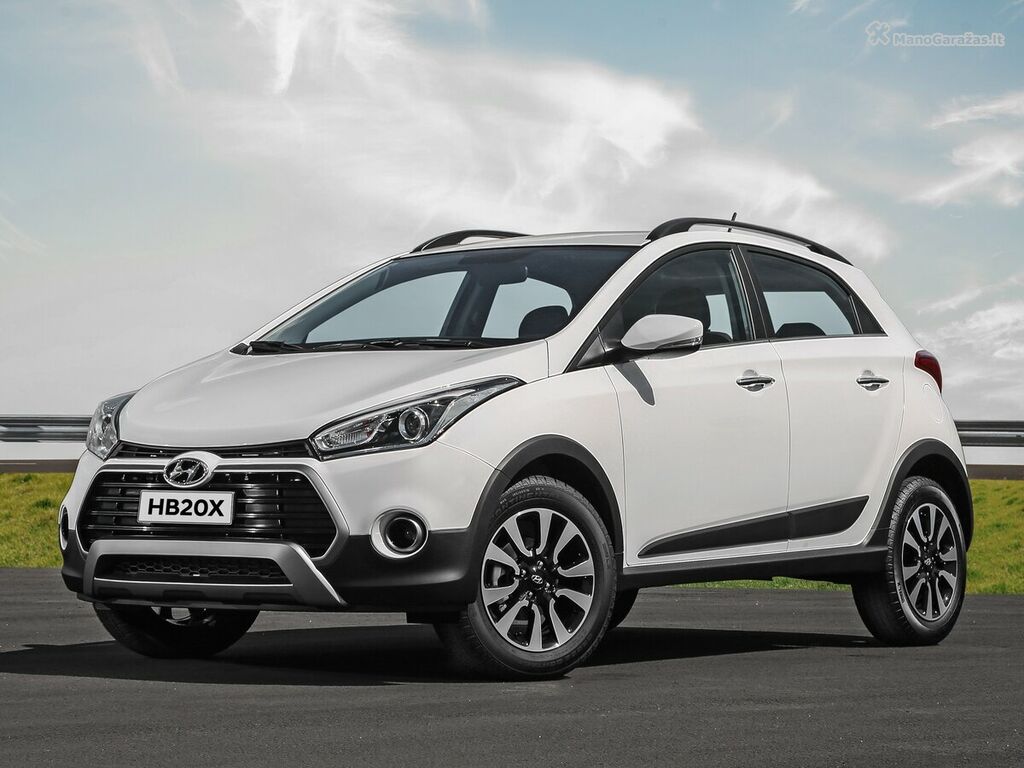

Hyundai HB20 I Facelift · Hatchback 5 doors X · 2015–2019
Hyundai HB20 X 1.6 MT 122 HP
- Power
- 150 hp · 110 kW
- Torque
- 204 Nm
- 0–100 km/h
- 13.0 s
- Top speed
- 155 km/h
- Fuel consumption
- 9.4 l/100 km
- On a full tank
- ~640 km
Other versions of this body · 2
Consumption and performance
- Top speed
- 155 km/h
- Acceleration 0–100 km/h
- 13 s
- Fuel tank
- 60 l
Engine
- Engine type
- Gasoline
- Engine code
- f23a
- Displacement
- 2,253 cm³
- Max power
- 110 kW / 150 hp
- Torque
- 204 Nm at 4700 rpm
- Fuel
- A92
- Fuel system
- Multipoint injection
- Turbo
- No
- Engine position
- In front
- Cylinders
- 4
- Valves per cylinder
- 4
- Valvetrain
- SOHC
- Bore
- 86 mm
- Stroke
- 97 mm
- Compression ratio
- 9.3
Transmission
- Drive
- Front
- Gearbox
- Automatic
- Gears
- 4
Dimensions and capacity
- Body type
- Minivan
- Doors
- 5
- Seats
- 7
- Length
- 4,750 mm
- Width
- 1,770 mm
- Height
- 1,540 mm
- Wheelbase
- 2,830 mm
- Front track
- 1,525 mm
- Rear track
- 1,540 mm
- Ground clearance
- 155 mm
- Kerb weight
- 1,520 kg
Wheels, brakes and chassis
- Optional tyre sizes
- 215/60R16
- Wheel fitment (PCD, CB)
- DIA64.1 5x114.3
- Front brakes
- Discs
- Rear brakes
- Discs
- Front suspension
- Independent, coil spring
- Rear suspension
- Independent, coil spring
