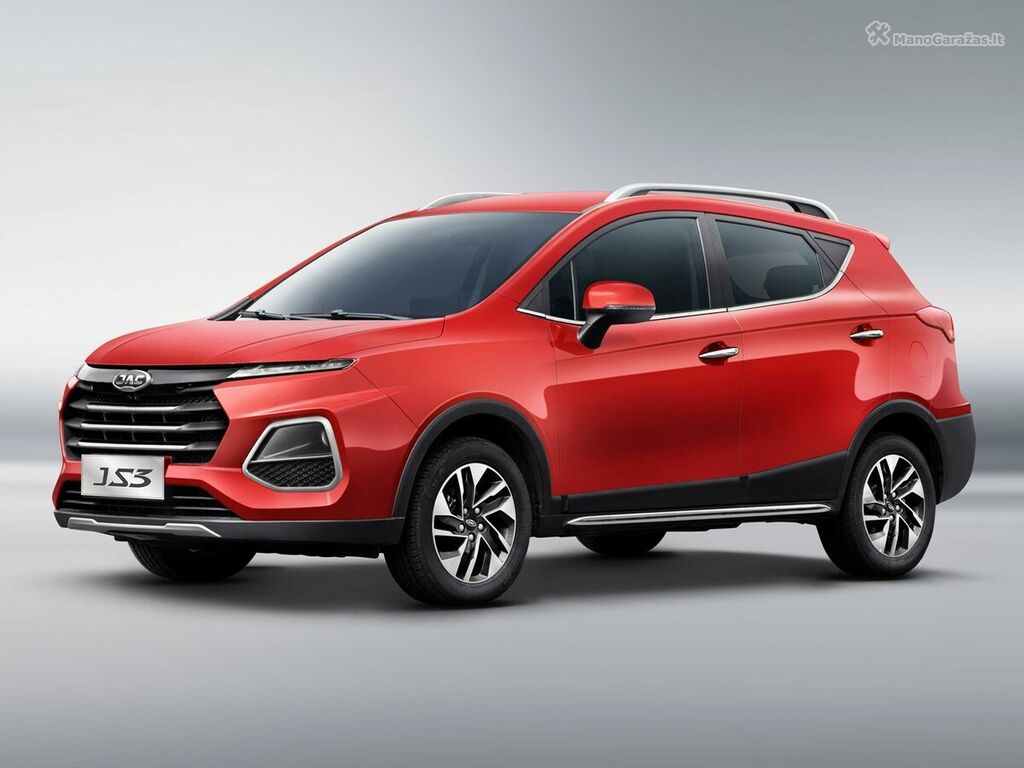

JAC JS3 · SUV 5 doors · from 2023
JAC JS3 1.6 MT 109 HP
- Power
- 109 hp · 80 kW
- Torque
- 150 Nm
- Top speed
- 180 km/h
Other versions of this body · 2
Consumption and performance
- Top speed
- 180 km/h
- Fuel tank
- 45 l
Engine
- Engine type
- Gasoline
- Engine code
- HFC4GB33D
- Displacement
- 1,590 cm³
- Max power
- 80 kW / 109 hp
- Torque
- 150 Nm at 3500 rpm
- Fuel system
- Multipoint injection
- Turbo
- No
- Engine position
- In front
- Cylinders
- 4
- Valves per cylinder
- 4
- Valvetrain
- DOHC
- Emission standard
- Euro 5
Transmission
- Drive
- Front
- Gearbox
- Manual
- Gears
- 6
Dimensions and capacity
- Body type
- SUV
- Doors
- 5
- Seats
- 5
- Length
- 4,345 mm
- Width
- 1,765 mm
- Height
- 1,640 mm
- Wheelbase
- 2,560 mm
- Ground clearance
- 155 mm
- Kerb weight
- 1,260 kg
- Max weight
- 1,630 kg
- Boot space (min)
- 600 l
- Boot space (max)
- 600 l
- Turning circle
- 11 m
Wheels, brakes and chassis
- Tyre size
- 205/55/R16
- Optional tyre sizes
- 205/50R17
- Wheel fitment (PCD, CB)
- DIA54.1 5x108
- Wheel fasteners
- Bolts M12x1.5
- Front brakes
- Ventilated discs
- Front suspension
- Independent, coil spring
- Rear suspension
- Semi-independent, coil spring
