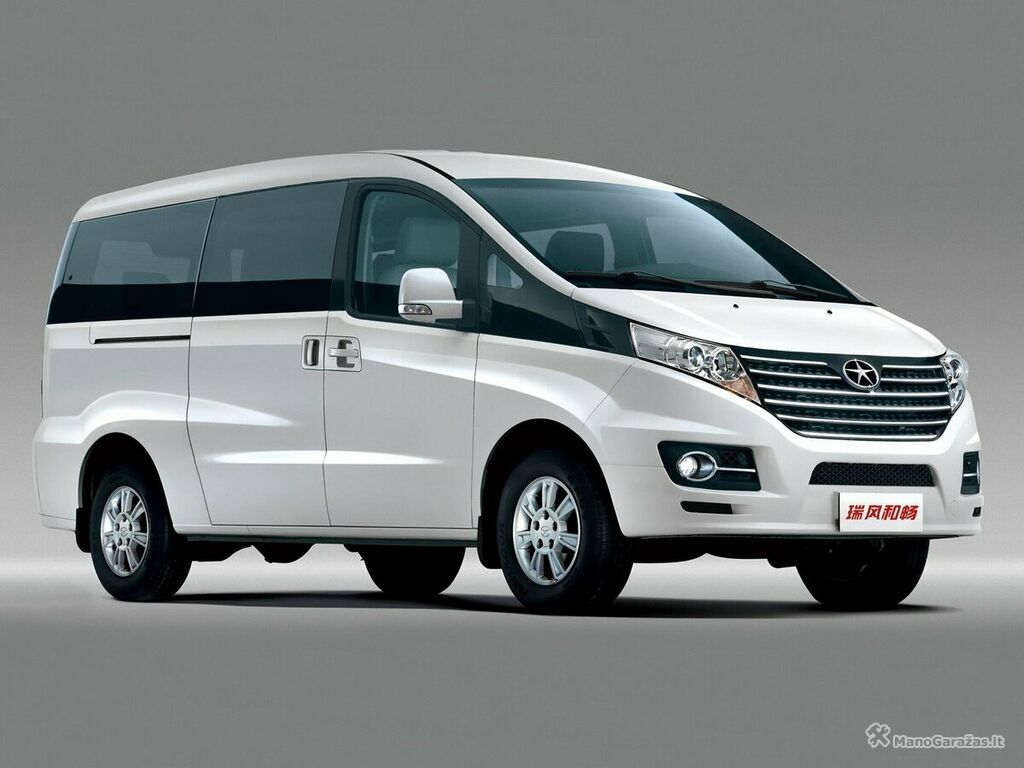

JAC M5 · Minivan · 2011–2025
JAC M5 2.0 AT 177 HP
- Power
- 177 hp · 130 kW
- Torque
- 260 Nm
- Top speed
- 165 km/h
- Fuel consumption
- 8.0 l/100 km
- On a full tank
- ~1,000 km
Other versions of this body · 2
Consumption and performance
- Top speed
- 165 km/h
- Fuel tank
- 80 l
Engine
- Engine type
- Gasoline
- Engine code
- HFC4GA3-1D
- Displacement
- 1,997 cm³
- Max power
- 130 kW / 177 hp
- Torque
- 260 Nm at 2000 rpm
- Fuel
- A95
- Fuel system
- Multipoint injection
- Turbo
- Turbo
- Engine position
- In front
- Cylinders
- 4
- Valves per cylinder
- 4
- Valvetrain
- DOHC
- Bore
- 85 mm
- Stroke
- 88 mm
- Compression ratio
- 9.5
- Emission standard
- Euro 4
Transmission
- Drive
- Front
- Gearbox
- Automatic
- Gears
- 5
Dimensions and capacity
- Body type
- Minivan
- Doors
- 5
- Seats
- 7
- Length
- 5,100 mm
- Width
- 1,840 mm
- Height
- 1,970 mm
- Wheelbase
- 3,080 mm
- Front track
- 1,570 mm
- Rear track
- 1,545 mm
- Ground clearance
- 160 mm
- Kerb weight
- 2,155 kg
- Max weight
- 2,800 kg
Wheels, brakes and chassis
- Tyre size
- 225/60/R17
- Front brakes
- Ventilated discs
- Rear brakes
- Discs
- Front suspension
- Independent, coil spring
- Rear suspension
- Independent, coil spring
