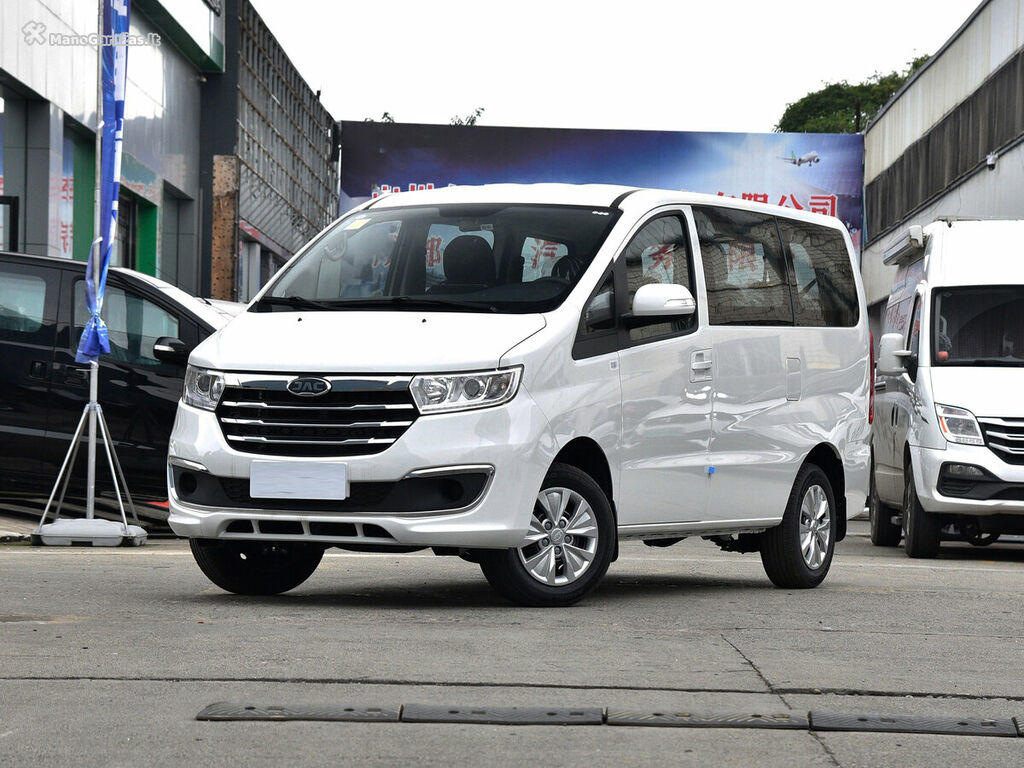

JAC Refine M3 · Minivan · from 2016
JAC Refine M3 2.0 MT 143 HP
- Power
- 266 hp · 196 kW
- Torque
- 392 Nm
- 0–100 km/h
- 8.3 s
- Top speed
- 200 km/h
Other versions of this body · 5
Consumption and performance
- Top speed
- 200 km/h
- Acceleration 0–100 km/h
- 8.3 s
- Fuel tank
- 65 l
Engine
- Engine type
- Gasoline
- Engine code
- 2gr-fe
- Displacement
- 3,456 cm³
- Max power
- 196 kW / 266 hp
- Torque
- 392 Nm at 4700 rpm
- Fuel
- A95
- Fuel system
- Multipoint injection
- Turbo
- No
- Engine position
- V type
- Cylinders
- 6
- Valves per cylinder
- 4
- Valvetrain
- DOHC
- Bore
- 94 mm
- Stroke
- 83 mm
- Compression ratio
- 10.8
Transmission
- Drive
- Front
- Gearbox
- Automatic
- Gears
- 6
Dimensions and capacity
- Body type
- Minivan
- Doors
- 5
- Seats
- 7
- Length
- 4,875 mm
- Width
- 1,830 mm
- Height
- 1,905 mm
- Wheelbase
- 2,950 mm
- Front track
- 1,580 mm
- Rear track
- 1,585 mm
- Ground clearance
- 168 mm
Wheels, brakes and chassis
- Optional tyre sizes
- 215/60R17, 235/50R18
- Wheel fitment (PCD, CB)
- DIA60.1 5x114.3
- Front brakes
- Ventilated discs
- Rear brakes
- Discs
- Front suspension
- Independent, coil spring
- Rear suspension
- Independent, coil spring
