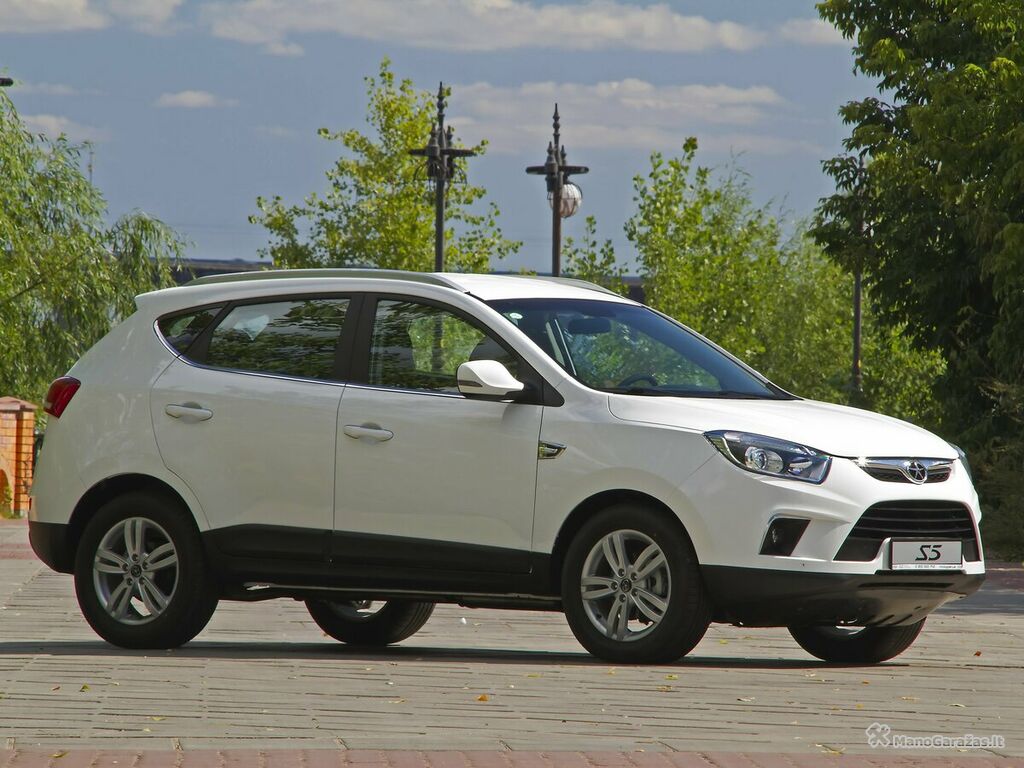

JAC S5 (Eagle) I SUV 5 doors All photos (8)
JAC S5 (Eagle) I · SUV 5 doors · 2013–2019

JAC S5 (Eagle) 1.8 MT 160 HP

GasolineManual, 6 gearsFront driveEuro 5
Power
160 hp · 118 kW
Torque
235 Nm
Top speed
190 km/h
Fuel consumption
7.8 l/100 km
On a full tank
~710 km
Other versions of this body · 5
1.8 MT 160 HP 2.0 MT 136 HP 2.0 MT 150 HP 2.0 MT 161 HP 2.0 MT 176 HP

Consumption and performance

manufacturer data
Top speed
190 km/h
Fuel tank
55 l

Engine

hfc4ga5.1d · 1,795 cm³
Engine type
Gasoline
Engine code
hfc4ga5.1d
Displacement
1,795 cm³
Max power
118 kW / 160 hp
Torque
235 Nm at 4000 rpm
Fuel system
Multipoint injection
Turbo
Turbo
Engine position
In front
Cylinders
4
Valves per cylinder
4
Valvetrain
DOHC
Emission standard
Euro 5

Transmission

Drive
Front
Gearbox
Manual
Gears
6

Dimensions and capacity

class C
Body type
SUV
Doors
5
Seats
5
Length
4,475 mm
Width
1,840 mm
Height
1,680 mm
Wheelbase
2,645 mm
Front track
1,590 mm
Rear track
1,590 mm
Ground clearance
210 mm
Boot space (min)
505 l
Boot space (max)
1,100 l
Turning circle
11 m

Wheels, brakes and chassis

Tyre size
225/60/R17
Optional tyre sizes
215/70R16
Wheel fitment (PCD, CB)
DIA67.1 5x114.3
Front brakes
Discs
Rear brakes
Discs
Front suspension
Independent, coil spring
Rear suspension
Independent, coil spring
