JAC S5 (Eagle) I Facelift SUV 5 doors All photos (8)

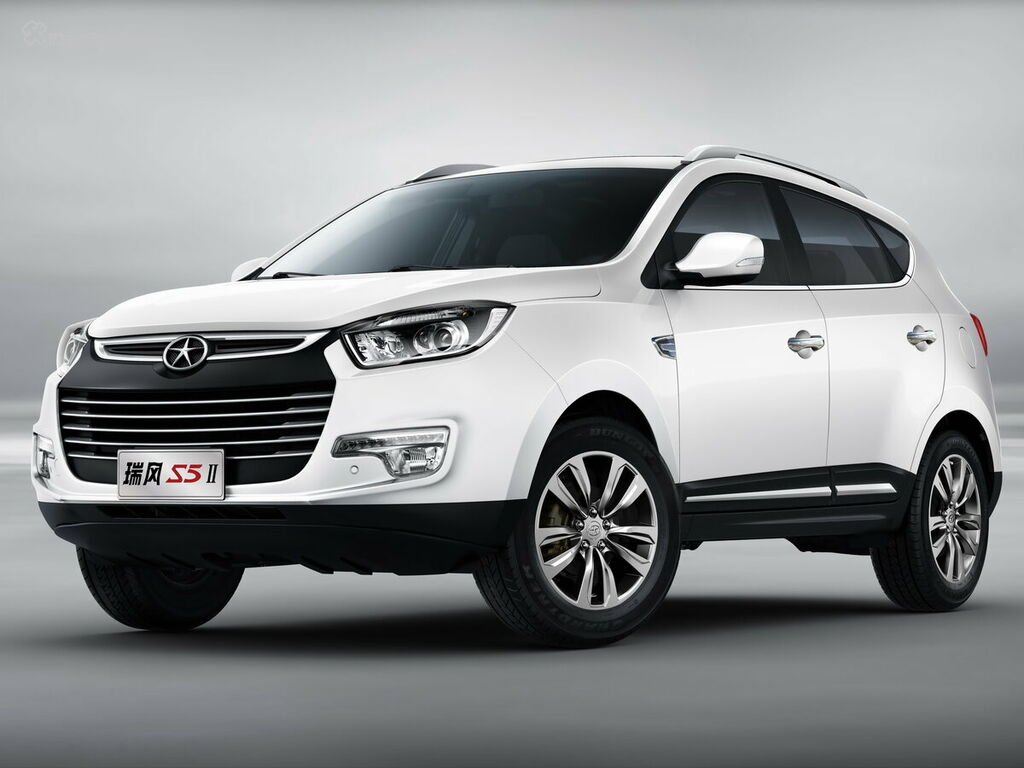

JAC S5 (Eagle) I Facelift · SUV 5 doors · 2018–2021

JAC S5 (Eagle) 2.0 AMT 161 HP

GasolineRobot, 6 gearsFront driveEuro 5
Power
161 hp · 118 kW
Torque
235 Nm
Top speed
180 km/h
Fuel consumption
8.0 l/100 km
On a full tank
~690 km
Other versions of this body · 7
2.0 AMT 150 HP 2.0 AMT 161 HP 2.0 MT 136 HP 2.0 MT 142 HP 2.0 MT 150 HP 2.0 MT 163 HP All versions →

Consumption and performance

manufacturer data
Top speed
180 km/h
Fuel tank
55 l

Engine

HFC4GA3.1D · 1,997 cm³
Engine type
Gasoline
Engine code
HFC4GA3.1D
Displacement
1,997 cm³
Max power
118 kW / 161 hp
Torque
235 Nm at 2000 rpm
Fuel
A95
Fuel system
Multipoint injection
Turbo
Turbo
Engine position
In front
Cylinders
4
Valves per cylinder
4
Valvetrain
DOHC
Bore
85 mm
Stroke
88 mm
Compression ratio
9.5
Emission standard
Euro 5

Transmission

Drive
Front
Gearbox
Robot
Gears
6

Dimensions and capacity

class C
Body type
SUV
Doors
5
Seats
5
Length
4,475 mm
Width
1,840 mm
Height
1,670 mm
Wheelbase
2,645 mm
Front track
1,590 mm
Rear track
1,590 mm
Ground clearance
170 mm
Kerb weight
1,545 kg
Max weight
1,920 kg
Boot space (min)
650 l
Boot space (max)
650 l
Turning circle
11 m

Wheels, brakes and chassis

Tyre size
225/55/R18
Wheel fitment (PCD, CB)
DIA67.1 5x114.3
Front brakes
Ventilated discs
Rear brakes
Discs
Front suspension
Independent, coil spring
Rear suspension
Independent, coil spring
