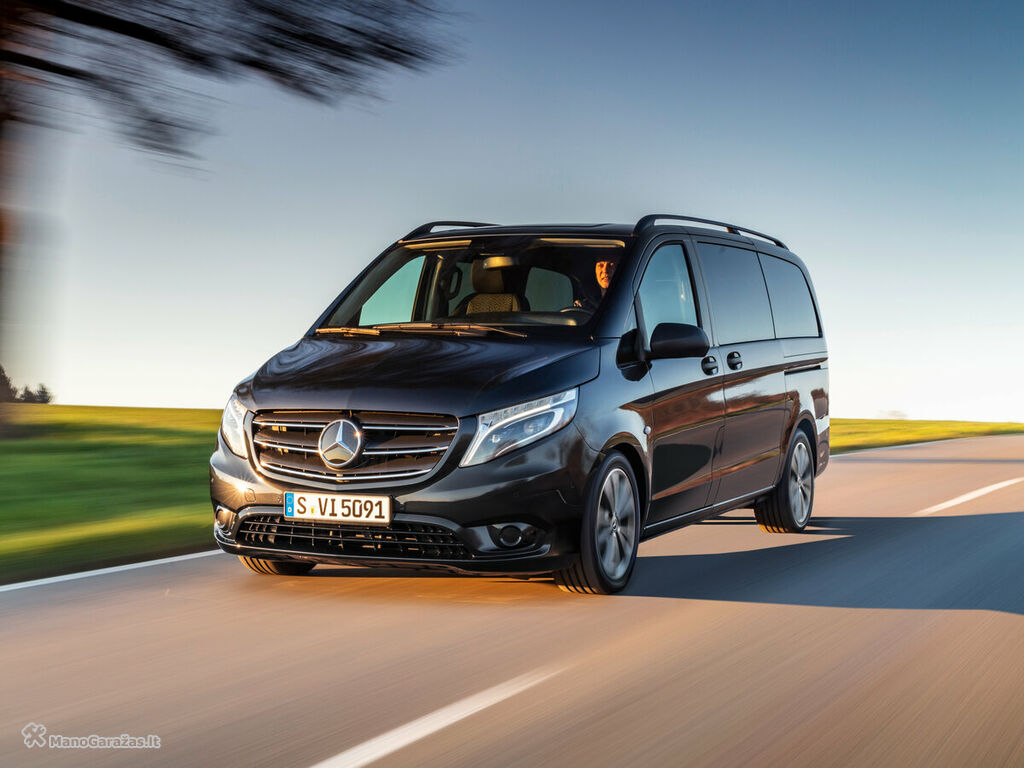

Mercedes-Benz Vito III (W447) Facelift · Minivan L1 · 2019–2023
Mercedes-Benz Vito 124 CDI L1 2.0 AT 239 HP
- Power
- 240 hp · 177 kW
- Torque
- 500 Nm
- 0–100 km/h
- 6.4 s
- Top speed
- 247 km/h
- Fuel consumption
- 5.8 l/100 km
- On a full tank
- ~1,140 km
Consumption and performance
- Top speed
- 247 km/h
- Acceleration 0–100 km/h
- 6.4 s
- Fuel tank
- 66 l
Engine
- Engine type
- Diesel
- Engine code
- CUAA
- Displacement
- 1,968 cm³
- Max power
- 177 kW / 240 hp
- Torque
- 500 Nm at 1750 rpm
- Fuel system
- Diesel, Common rail
- Turbo
- Turbo
- Engine position
- In front
- Cylinders
- 4
- Valves per cylinder
- 4
- Valvetrain
- DOHC
- Bore
- 81 mm
- Stroke
- 95.5 mm
- Compression ratio
- 15.5
- Emission standard
- Euro 6
- CO₂ emissions
- 151 g/km
Transmission
- Drive
- All
- Gearbox
- Robot
- Gears
- 7
Dimensions and capacity
- Body type
- Sedan
- Doors
- 4
- Seats
- 5
- Length
- 4,775 mm
- Width
- 1,832 mm
- Width incl. mirrors
- 2,083 mm
- Height
- 1,483 mm
- Wheelbase
- 2,786 mm
- Front track
- 1,578 mm
- Rear track
- 1,564 mm
- Ground clearance
- 160 mm
- Kerb weight
- 1,730 kg
- Max weight
- 2,270 kg
- Boot space (min)
- 586 l
- Boot space (max)
- 1,152 l
- Turning circle
- 11.7 m
Wheels, brakes and chassis
- Tyre size
- 215/60/R16 215/55/R17 235/45/R18 235/40/R19
- Optional tyre sizes
- 235/40R19, 235/45R18
- Wheel fitment (PCD, CB)
- DIA57.1 5x112
- Wheel fasteners
- Bolts M14x1.5
- Wheel tightening torque
- 140 Nm
- Tyre pressure
- 2.6 bar
- Front brakes
- Ventilated discs
- Rear brakes
- Discs
- Front suspension
- Independent, coil spring
- Rear suspension
- Independent, coil spring
