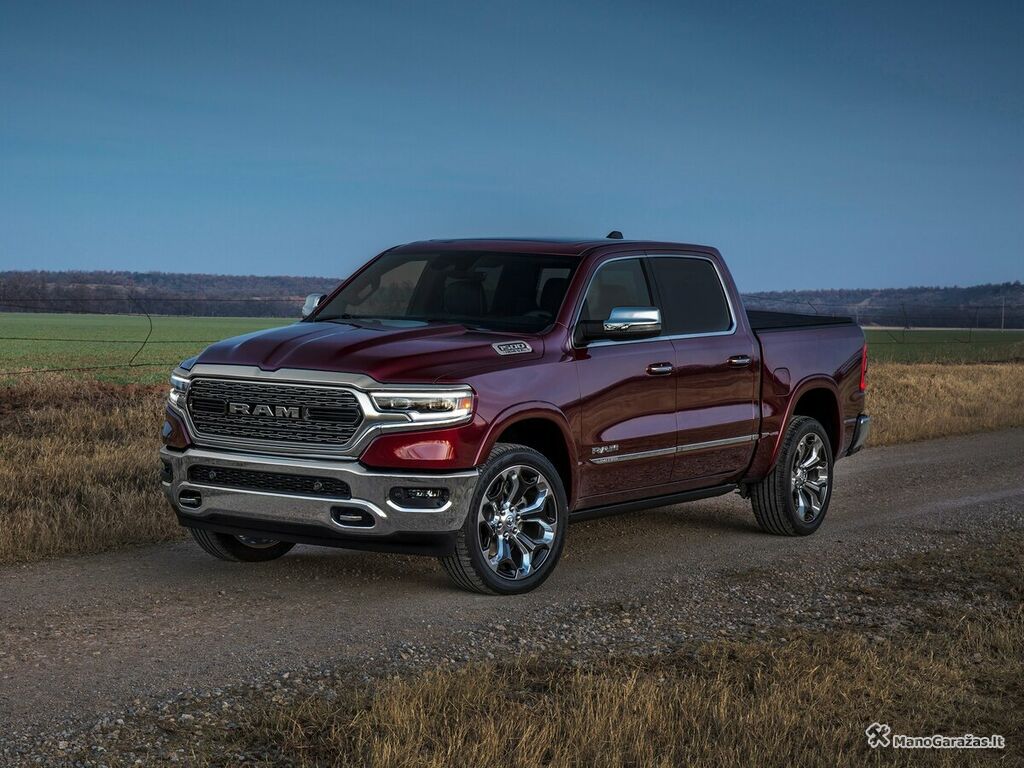

Ram 1500 V Pickup double cab Crew Cab All photos (8)
Ram 1500 V · Pickup double cab Crew Cab · 2018–2024

Ram 1500 Crew Cab 3.0 AT 260 HP AWD

GasolineAutomatic, 8 gearsAll driveEuro 6
Power
306 hp · 225 kW
Torque
400 Nm
0–100 km/h
6.5 s
Top speed
235 km/h
Fuel consumption
8.5 l/100 km
On a full tank
~1,000 km
Other versions of this body · 4
Crew Cab 3.0 AT 260 HP Crew Cab 3.0 AT 260 HP AWD Crew Cab eTorque 5.7 AT 395 HP Crew Cab eTorque 5.7 AT 395 HP AWD

Consumption and performance

manufacturer data
Top speed
235 km/h
Acceleration 0–100 km/h
6.5 s
Fuel tank
85 l

Engine

N55B30 · 2,979 cm³
Engine type
Gasoline
Engine code
N55B30
Displacement
2,979 cm³
Max power
225 kW / 306 hp
Torque
400 Nm at 1200 rpm
Fuel
A95
Fuel system
Direct injection
Turbo
Turbo
Engine position
In front
Cylinders
6
Valves per cylinder
4
Valvetrain
DOHC
Bore
84 mm
Stroke
89.6 mm
Compression ratio
10.2
Emission standard
Euro 6
CO₂ emissions
197 g/km

Transmission

Drive
All
Gearbox
Automatic
Gears
8

Dimensions and capacity

Body code F15 · class J
Body type
SUV
Doors
5
Seats
5, 7
Length
4,886 mm
Width
1,938 mm
Height
1,762 mm
Wheelbase
2,933 mm
Front track
1,640 mm
Rear track
1,646 mm
Ground clearance
209 mm
Kerb weight
2,030 kg
Max weight
2,740 kg
Boot space (min)
650 l
Boot space (max)
1,870 l

Wheels, brakes and chassis

Tyre size
255/55/R18
Optional tyre sizes
255/50R19 / 285/45R19, 275/40R20 / 315/35R20, 285/35R21 / 325/30R21
Wheel fitment (PCD, CB)
DIA74.1 5x120
Front brakes
Ventilated discs
Rear brakes
Ventilated discs
Front suspension
Independent, coil spring
Rear suspension
Independent, coil spring
