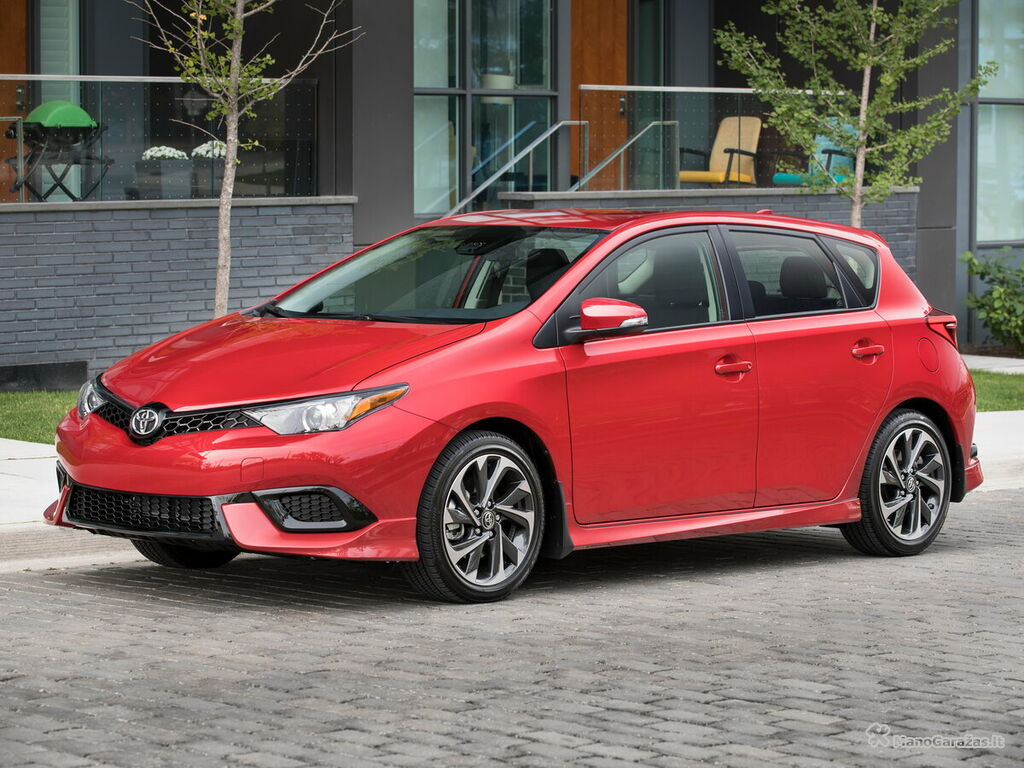

Toyota Corolla XI (E160, E170) Facelift · Hatchback 5 doors iM · 2015–2019
Toyota Corolla iM 1.8 CVT 139 HP
- Power
- 86 hp · 63 kW
- Torque
- 113 Nm
- 0–100 km/h
- 10.5 s
- Top speed
- 177 km/h
- Fuel consumption
- 6.7 l/100 km
- On a full tank
- ~700 km
Other versions of this body · 2
Consumption and performance
- Top speed
- 177 km/h
- Acceleration 0–100 km/h
- 10.5 s
- Fuel tank
- 47 l
Engine
- Engine type
- Gasoline
- Engine code
- 176 B9.000
- Displacement
- 1,242 cm³
- Max power
- 63 kW / 86 hp
- Torque
- 113 Nm at 4500 rpm
- Fuel
- A95
- Fuel system
- Multipoint injection
- Turbo
- No
- Engine position
- In front
- Cylinders
- 4
- Valves per cylinder
- 4
- Valvetrain
- DOHC
- Bore
- 70.8 mm
- Stroke
- 78.9 mm
- Compression ratio
- 10.2
Transmission
- Drive
- Front
- Gearbox
- Manual
- Gears
- 5
Dimensions and capacity
- Body type
- Hatchback
- Doors
- 5
- Seats
- 5
- Length
- 3,760 mm
- Width
- 1,625 mm
- Height
- 1,460 mm
- Wheelbase
- 2,450 mm
- Front track
- 1,395 mm
- Rear track
- 1,375 mm
- Ground clearance
- 150 mm
- Boot space (min)
- 275 l
- Boot space (max)
- 1,080 l
Wheels, brakes and chassis
- Optional tyre sizes
- 185/60R14, 195/50R15
- Wheel fitment (PCD, CB)
- DIA58.1 4x98
- Front brakes
- Discs
- Rear brakes
- Drums
- Front suspension
- Independent, coil spring
- Rear suspension
- Independent, coil spring
