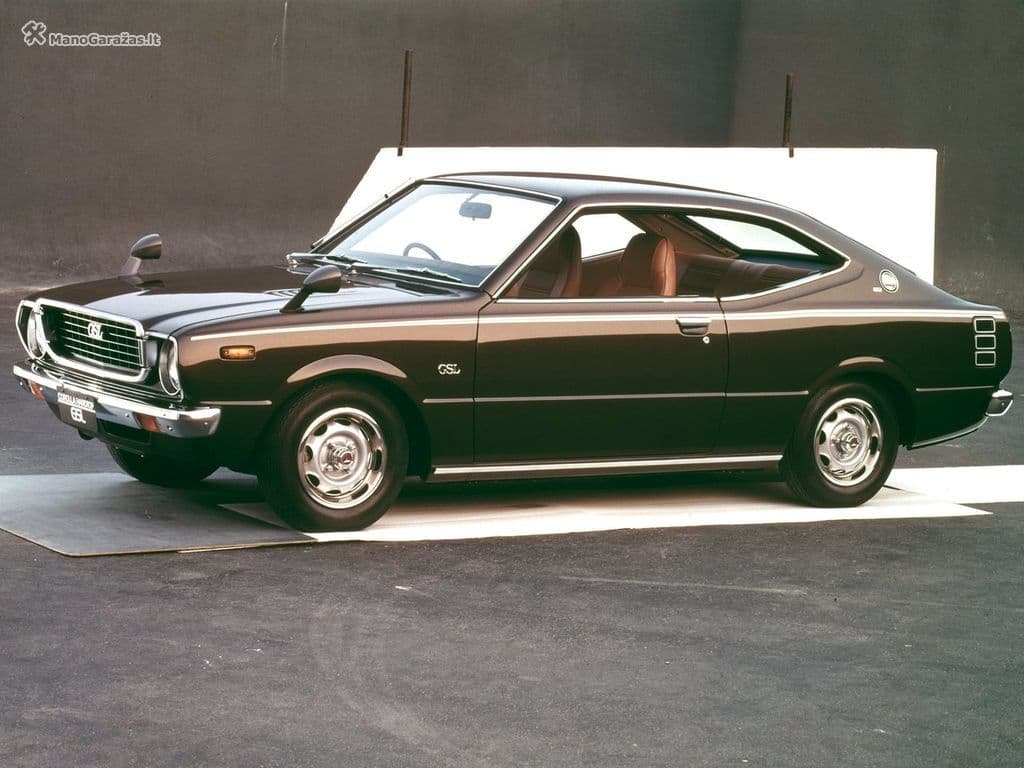

Toyota Corolla III (E30, E40, E50, E60) Liftback All photos (3)
Toyota Corolla III (E30, E40, E50, E60) · Liftback · 1972–1980

Toyota Corolla 1.6 AT 84 HP

GasolineAutomatic, 3 gearsRear drive
Power
84 hp · 62 kW
Other versions of this body · 4
1.2 MT 54 HP 1.6 AT 84 HP 1.6 MT 73 HP 1.6 MT 84 HP

Engine

12T-U · 1,600 cm³
Engine type
Gasoline
Engine code
12T-U
Displacement
1,600 cm³
Max power
62 kW / 84 hp
Fuel system
Carburetor
Turbo
No
Engine position
In front
Cylinders
4
Valves per cylinder
2
Valvetrain
SOHC
Bore
85 mm
Stroke
70 mm
Compression ratio
9.3

Transmission

Drive
Rear
Gearbox
Automatic
Gears
3

Dimensions and capacity

class C
Body type
Liftback
Doors
3
Seats
5
Length
4,082 mm
Width
1,615 mm
Height
1,321 mm
Wheelbase
2,370 mm
Front track
1,295 mm
Rear track
1,285 mm
Ground clearance
165 mm

Wheels, brakes and chassis

Front brakes
Discs
Front suspension
Independent, coil spring
Rear suspension
Independent, coil spring
