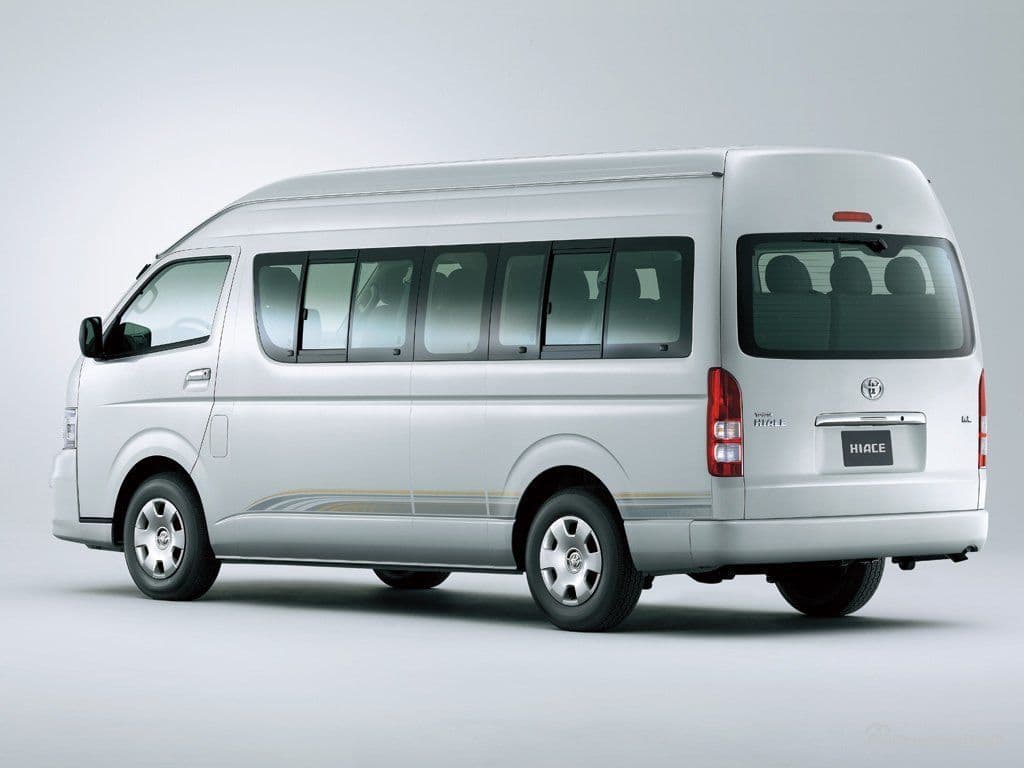

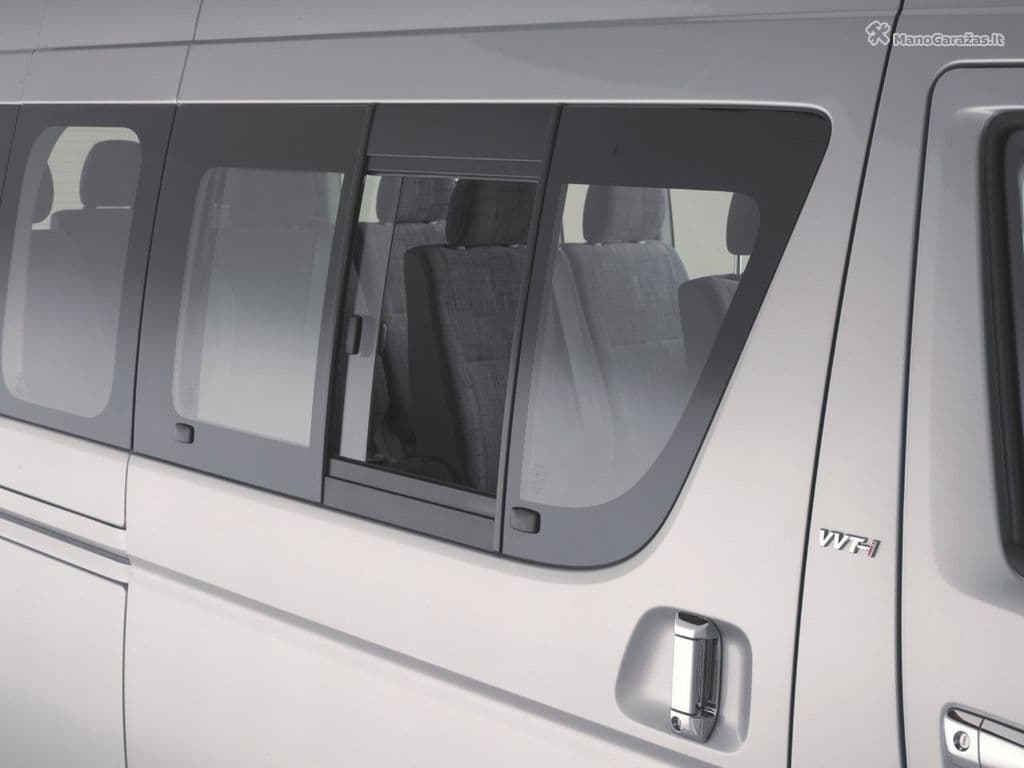

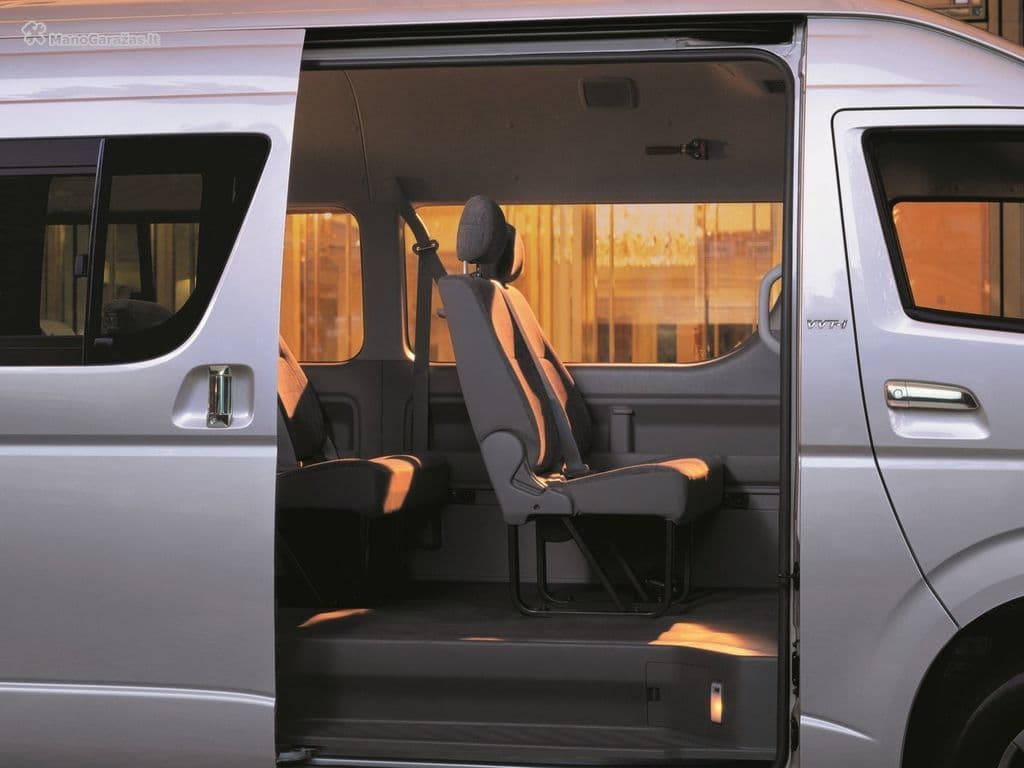

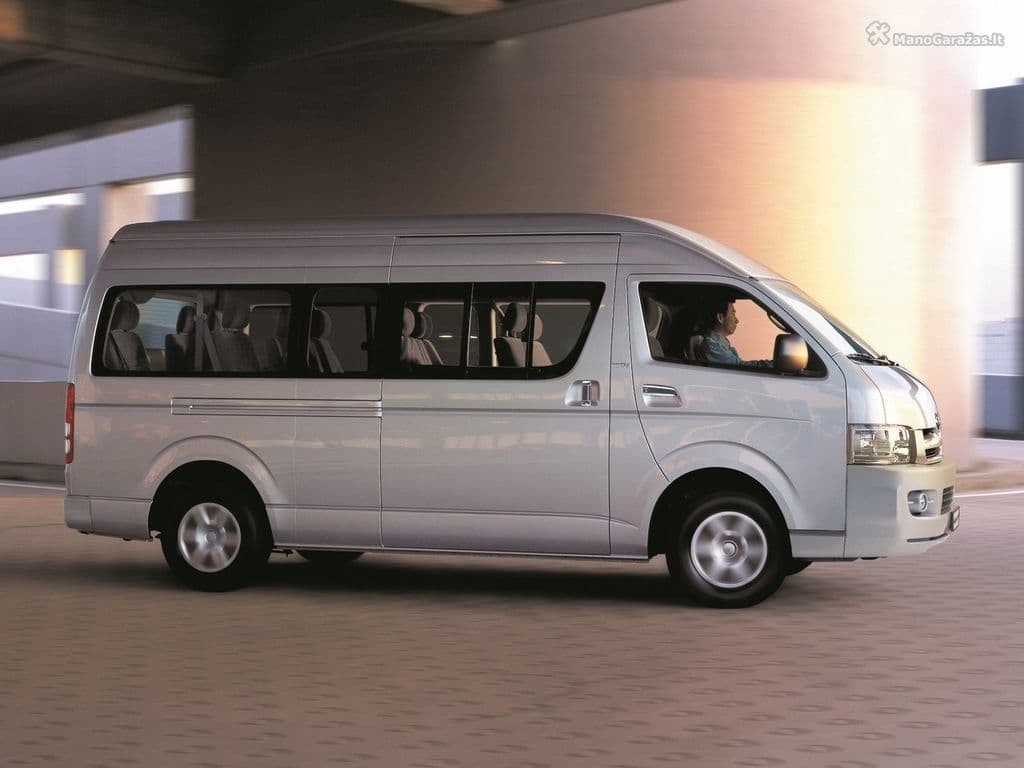

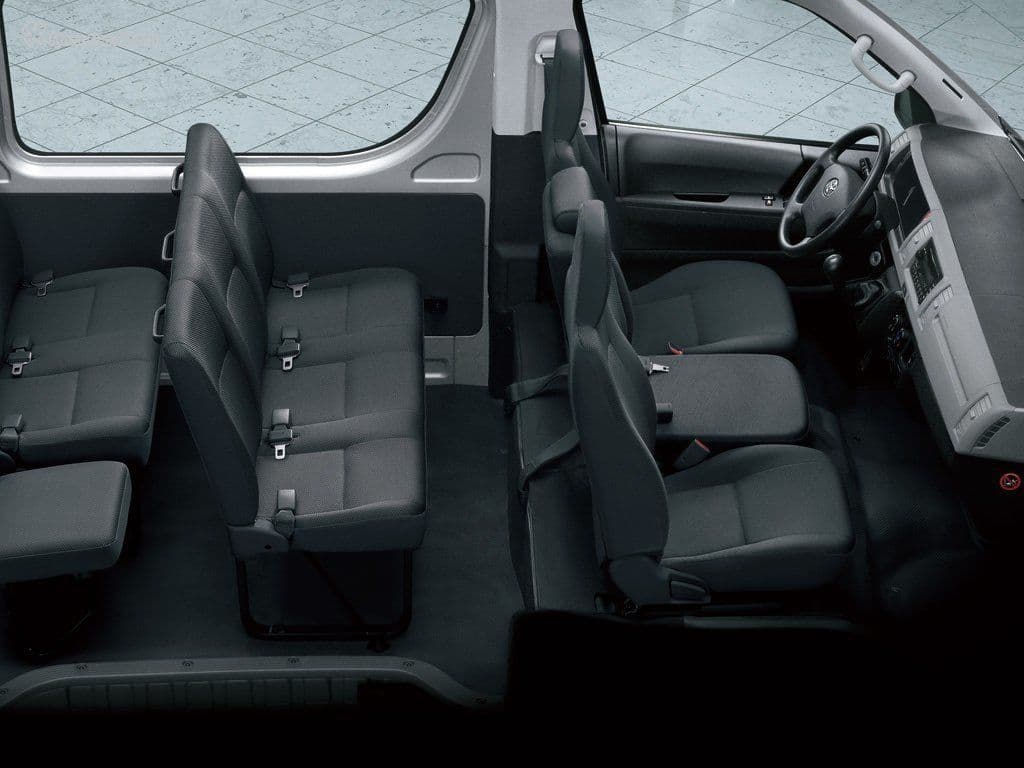

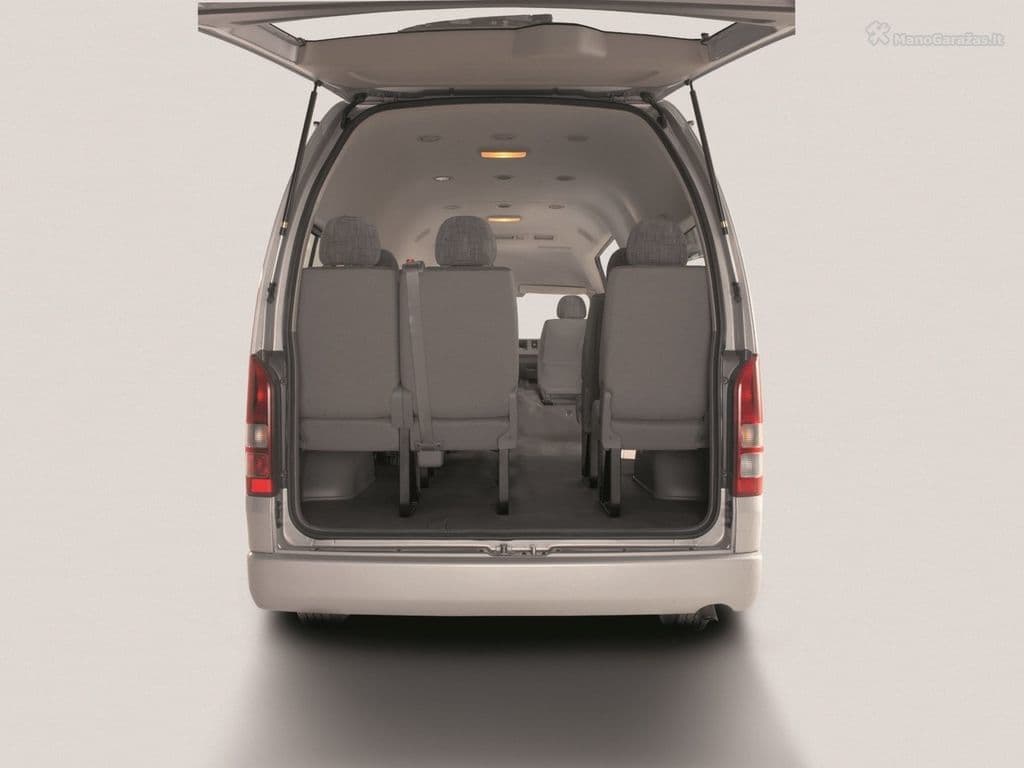

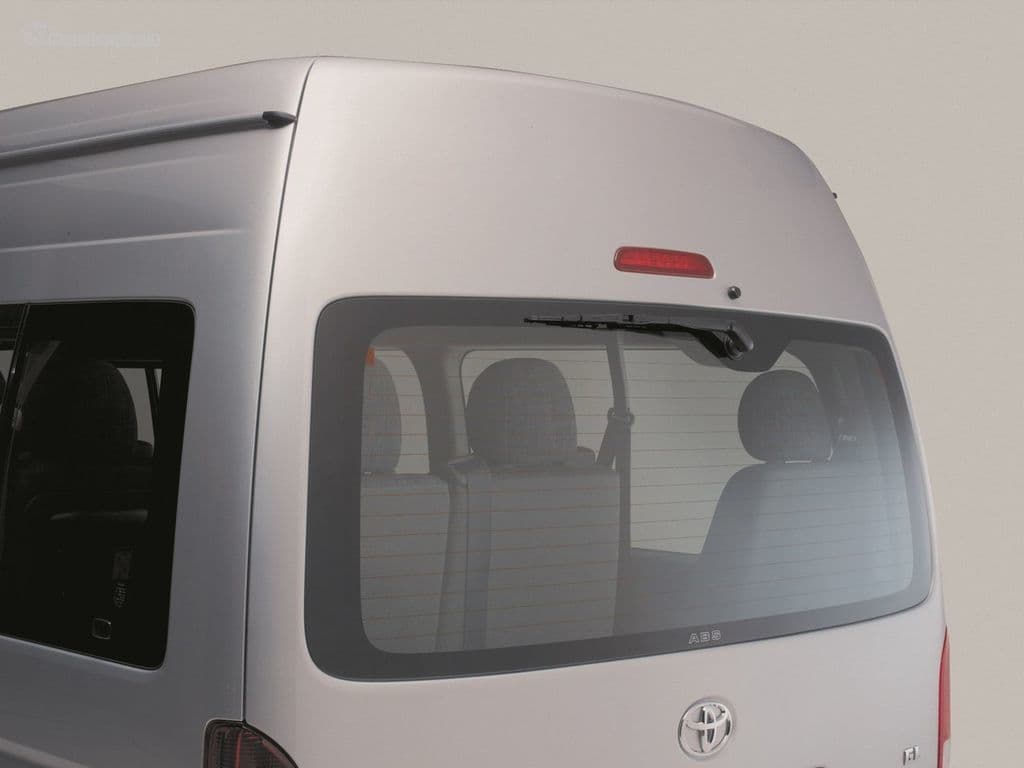

Toyota HiAce H200 Facelift Minivan All photos (8)
Toyota HiAce H200 Facelift · Minivan · from 2010

Toyota HiAce 3.0 MT 144 HP AWD

DieselManual, 5 gearsAll drive
Power
144 hp · 106 kW
Torque
300 Nm
Fuel consumption
7.8 l/100 km
On a full tank
~960 km
Other versions of this body · 17
2.8 AT 151 HP AWD 3.0 AT 144 HP 3.0 AT 144 HP AWD 3.0 MT 136 HP 3.0 MT 144 HP 3.0 MT 144 HP AWD All versions →

Consumption and performance

manufacturer data
Fuel tank
75 l

Engine

1KZ-TE · 2,982 cm³
Engine type
Diesel
Engine code
1KZ-TE
Displacement
2,982 cm³
Max power
106 kW / 144 hp
Torque
300 Nm at 3200 rpm
Fuel system
Diesel, Common rail
Turbo
Turbo
Engine position
In front
Cylinders
4
Valves per cylinder
4
Valvetrain
SOHC
Bore
96 mm
Stroke
100 mm
Compression ratio
21.2

Transmission

Drive
All
Gearbox
Manual
Gears
5

Dimensions and capacity

class M
Body type
Minivan
Doors
3
Seats
8
Length
5,380 mm
Width
1,880 mm
Height
2,285 mm
Wheelbase
3,110 mm
Front track
1,655 mm
Rear track
1,650 mm
Ground clearance
185 mm
Kerb weight
1,930 kg
Max weight
3,125 kg

Wheels, brakes and chassis

Tyre size
195/80/R15
Optional tyre sizes
195/80R15
Wheel fitment (PCD, CB)
DIA106.1 6x139.7
Front brakes
Ventilated discs
Rear brakes
Drums
Front suspension
Independent, coil spring
