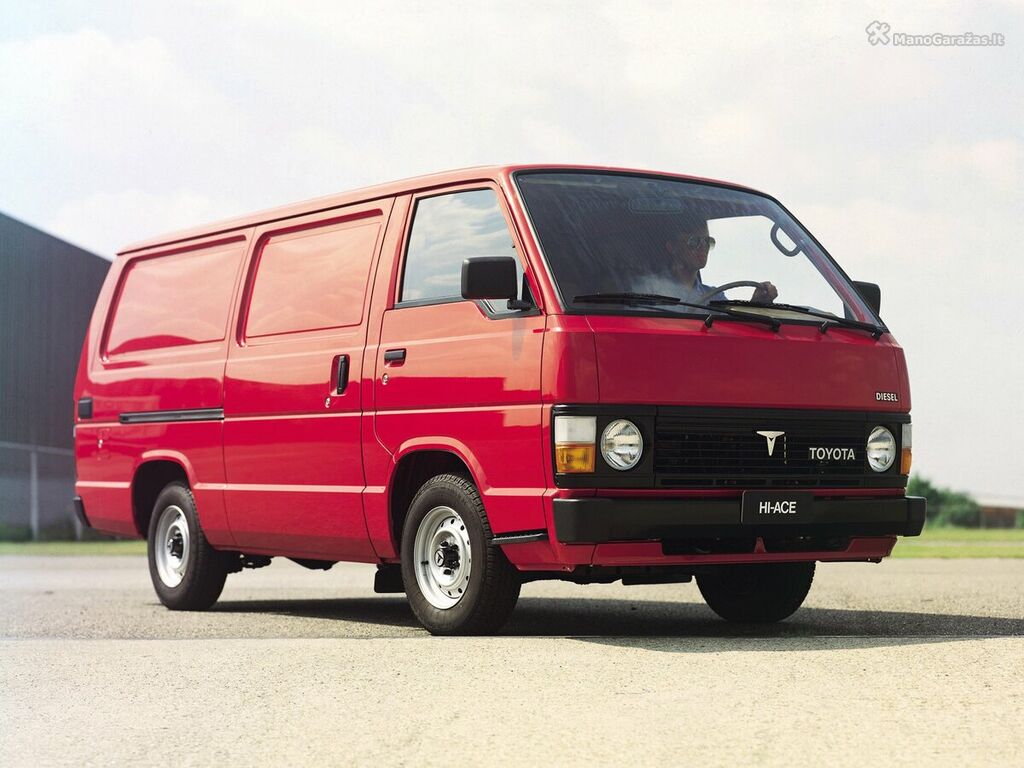

Toyota HiAce H50 H60 H70 Van All photos (5)
Toyota HiAce H50 H60 H70 · Van · 1982–1989

Toyota HiAce 2.4 MT 75 HP AWD

GasolineManual, 5 gearsFront drive
Power
132 hp · 97 kW
Torque
235 Nm
0–100 km/h
11.0 s
Top speed
195 km/h
Fuel consumption
11.1 l/100 km
On a full tank
~720 km
Other versions of this body · 7
2.0 AT 105 HP 2.0 MT 105 HP 2.2 MT 72 HP 2.4 AT 75 HP 2.4 MT 75 HP 2.4 MT 75 HP AWD All versions →

Consumption and performance

manufacturer data
Top speed
195 km/h
Acceleration 0–100 km/h
11 s
Fuel tank
80 l

Engine

RFV · 1,997 cm³
Engine type
Gasoline
Engine code
RFV
Displacement
1,997 cm³
Max power
97 kW / 132 hp
Torque
235 Nm at 2500 rpm
Fuel
A95
Fuel system
Multipoint injection
Turbo
Turbo
Engine position
In front
Cylinders
4
Valves per cylinder
4
Valvetrain
OHC
Bore
85 mm
Stroke
88 mm
Compression ratio
17.6

Transmission

Drive
Front
Gearbox
Manual
Gears
5

Dimensions and capacity

class M
Body type
Minivan
Doors
5
Seats
5
Length
4,448 mm
Width
1,829 mm
Height
1,709 mm
Wheelbase
2,819 mm
Front track
1,529 mm
Rear track
1,539 mm
Ground clearance
140 mm
Kerb weight
1,595 kg
Max weight
2,340 kg
Boot space (min)
340 l
Boot space (max)
340 l

Wheels, brakes and chassis

Tyre size
205/65/R15
Wheel fitment (PCD, CB)
DIA58.1 5x98
Tyre pressure
2.5-2.6 bar
Front brakes
Ventilated discs
Rear brakes
Discs
Front suspension
Independent, coil spring
Rear suspension
Independent, coil spring
