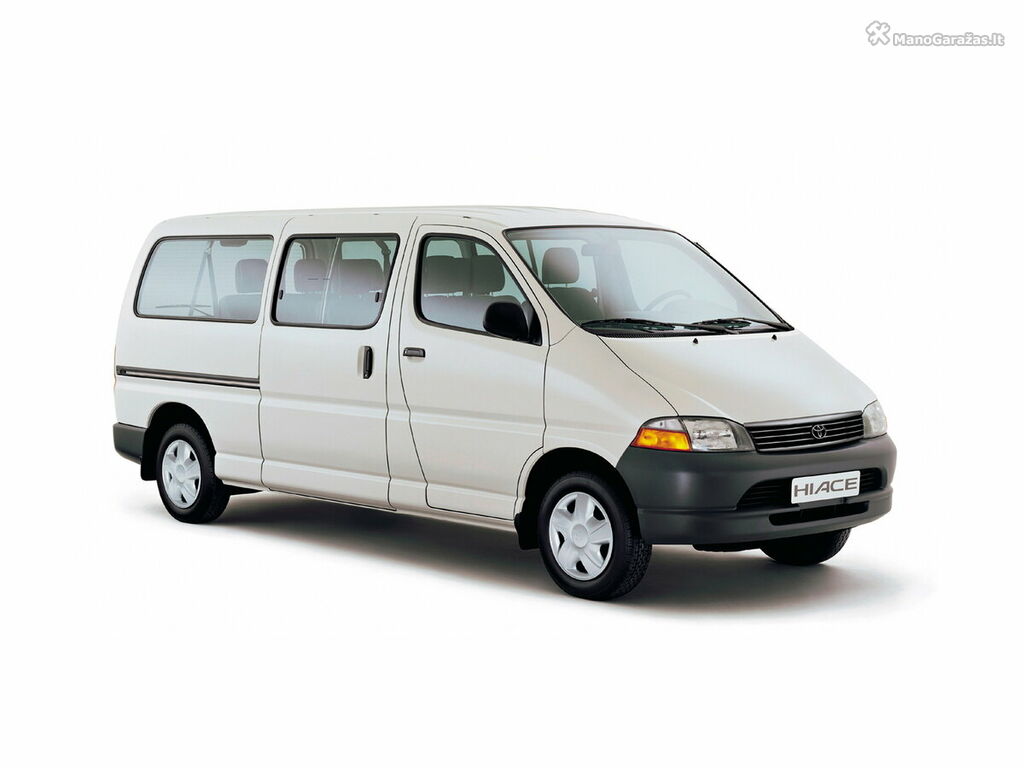

Toyota HiAce XH10 Minivan Long All photos (3)
Toyota HiAce XH10 · Minivan Long · 1995–2006

Toyota HiAce Long 2.5 MT 102 HP AWD

GasolineManual, 5 gearsFront drive
Power
121 hp · 89 kW
Torque
170 Nm
0–100 km/h
13.1 s
Top speed
177 km/h
Fuel consumption
10.6 l/100 km
On a full tank
~750 km
Other versions of this body · 4
Long 2.4 MT 90 HP Long 2.5 MT 102 HP Long 2.5 MT 102 HP AWD Long 2.7 MT 144 HP

Consumption and performance

manufacturer data
Top speed
177 km/h
Acceleration 0–100 km/h
13.1 s
Fuel tank
80 l

Engine

RFU · 1,997 cm³
Engine type
Gasoline
Engine code
RFU
Displacement
1,997 cm³
Max power
89 kW / 121 hp
Torque
170 Nm at 2650 rpm
Fuel
A95
Fuel system
Multipoint injection
Turbo
No
Engine position
In front
Cylinders
4
Valves per cylinder
2
Valvetrain
OHC
Bore
85 mm
Stroke
88 mm
Compression ratio
10.8

Transmission

Drive
Front
Gearbox
Manual
Gears
5

Dimensions and capacity

class M
Body type
Minivan
Doors
5
Seats
6, 7
Length
4,454 mm
Width
1,834 mm
Height
1,714 mm
Wheelbase
2,825 mm
Front track
1,534 mm
Rear track
1,540 mm
Ground clearance
140 mm
Kerb weight
1,510 kg
Max weight
2,300 kg
Boot space (min)
1,300 l
Boot space (max)
1,300 l

Wheels, brakes and chassis

Tyre size
205/65/R15
Wheel fitment (PCD, CB)
DIA58.1 5x98
Tyre pressure
2.5-2.6 bar
Front brakes
Ventilated discs
Rear brakes
Discs
Front suspension
Independent, coil spring
Rear suspension
Independent, coil spring
