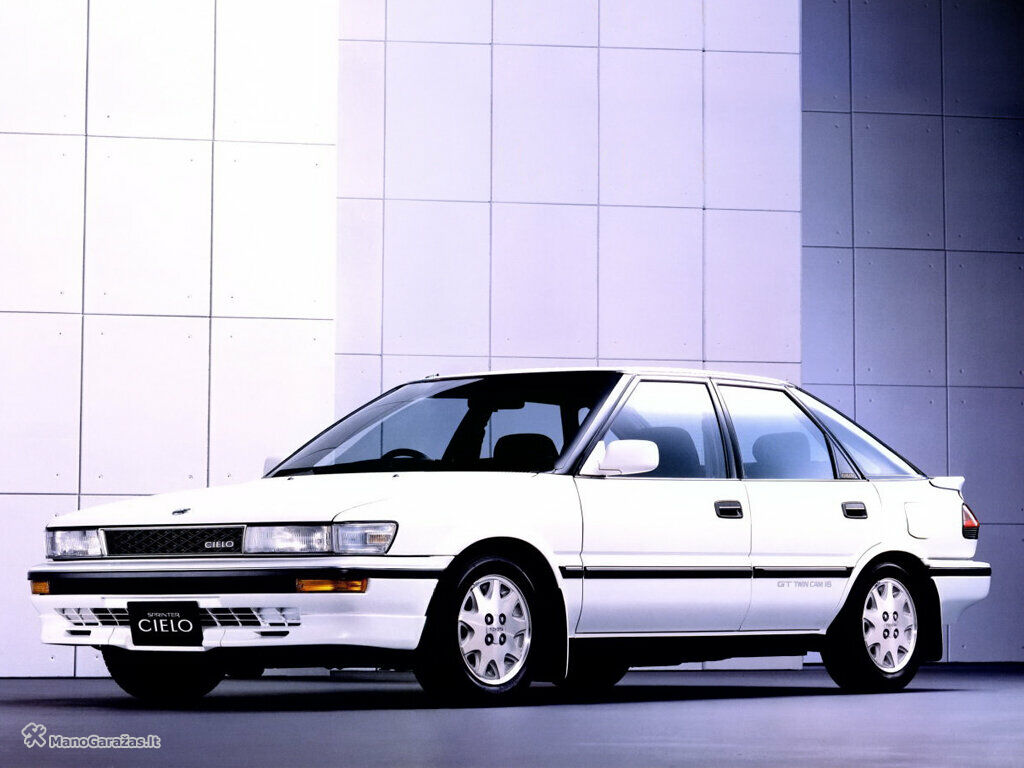

Toyota Sprinter VI (E90) Liftback Cielo All photos (4)
Toyota Sprinter VI (E90) · Liftback Cielo · 1987–1991

Toyota Sprinter 1.6 MT 140 HP

GasolineManual, 5 gearsFront drive
Power
140 hp · 103 kW
Torque
147 Nm
Other versions of this body · 10
1.5 MT 85 HP 1.5 MT 94 HP 1.6 AT 120 HP 1.6 AT 140 HP 1.6 MT 120 HP 1.6 MT 140 HP All versions →

Consumption and performance

manufacturer data
Fuel tank
50 l

Engine

4A-GE · 1,587 cm³
Engine type
Gasoline
Engine code
4A-GE
Displacement
1,587 cm³
Max power
103 kW / 140 hp
Torque
147 Nm at 6000 rpm
Fuel
A98
Fuel system
Mono injection
Turbo
No
Engine position
In front
Cylinders
4
Valves per cylinder
4
Valvetrain
DOHC
Bore
81 mm
Stroke
77 mm
Compression ratio
10.3

Transmission

Drive
Front
Gearbox
Manual
Gears
5

Dimensions and capacity

class C
Body type
Liftback
Doors
5
Seats
5
Length
4,255 mm
Width
1,655 mm
Height
1,365 mm
Wheelbase
2,430 mm
Front track
1,430 mm
Rear track
1,410 mm
Ground clearance
155 mm
Kerb weight
1,050 kg
Turning circle
9.8 m

Wheels, brakes and chassis

Front brakes
Discs
Rear brakes
Discs
Front suspension
Independent, coil spring
Rear suspension
Independent, coil spring
