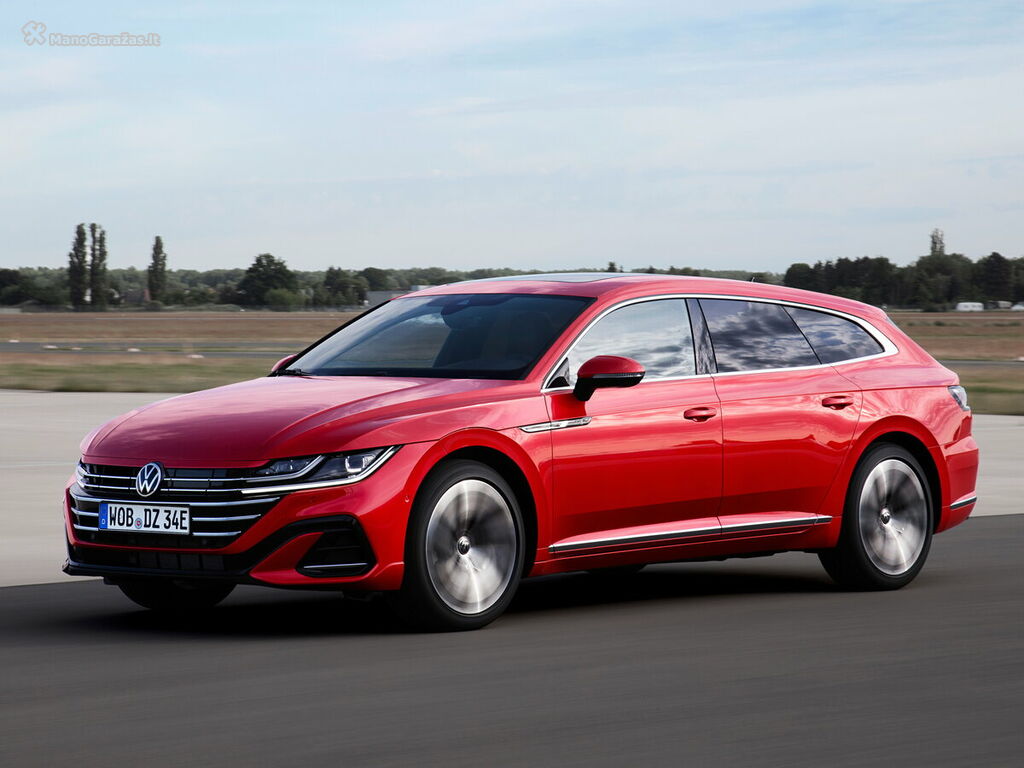

Volkswagen Arteon I I Facelift Estate (wagon) 5 doors All photos (8)
Volkswagen Arteon I I Facelift · Estate (wagon) 5 doors · 2020–2024

Volkswagen Arteon I 1.4 AMT 218 HP

GasolineManual, 6 gearsFront driveEuro 5
Power
140 hp · 103 kW
Torque
200 Nm
0–100 km/h
10.9 s
Top speed
207 km/h
Fuel consumption
6.3 l/100 km
On a full tank
~890 km
Other versions of this body · 8
1.4 AMT 218 HP 1.5 MT 150 HP 2.0 AMT 150 HP 2.0 AMT 190 HP 2.0 AMT 200 HP 2.0 AMT 200 HP AWD All versions →

Consumption and performance

manufacturer data
Top speed
207 km/h
Acceleration 0–100 km/h
10.9 s
Fuel tank
56 l

Engine

a14net · 1,364 cm³
Engine type
Gasoline
Engine code
a14net
Displacement
1,364 cm³
Max power
103 kW / 140 hp
Torque
200 Nm at 4200 rpm
Fuel
A95
Fuel system
Multipoint injection
Turbo
Turbo
Engine position
In front
Cylinders
4
Valves per cylinder
4
Valvetrain
DOHC
Bore
72.5 mm
Stroke
82.6 mm
Compression ratio
9.5
Emission standard
Euro 5
CO₂ emissions
148 g/km

Transmission

Drive
Front
Gearbox
Manual
Gears
6

Dimensions and capacity

class C
Body type
Cabrio
Doors
2
Seats
4
Length
4,696 mm
Width
1,838 mm
Height
1,440 mm
Wheelbase
2,695 mm
Front track
1,587 mm
Rear track
1,587 mm
Ground clearance
145 mm
Kerb weight
1,626 kg
Max weight
2,105 kg
Boot space (min)
280 l
Boot space (max)
350 l

Wheels, brakes and chassis

Tyre size
225/55/R17
Wheel fitment (PCD, CB)
DIA70.3 5x115
Wheel fasteners
Nuts M12x1.5
Wheel tightening torque
140 Nm
Tyre pressure
2.3 bar
Front brakes
Ventilated discs
Rear brakes
Discs
Front suspension
Independent, coil spring
Rear suspension
Semi-independent, coil spring
