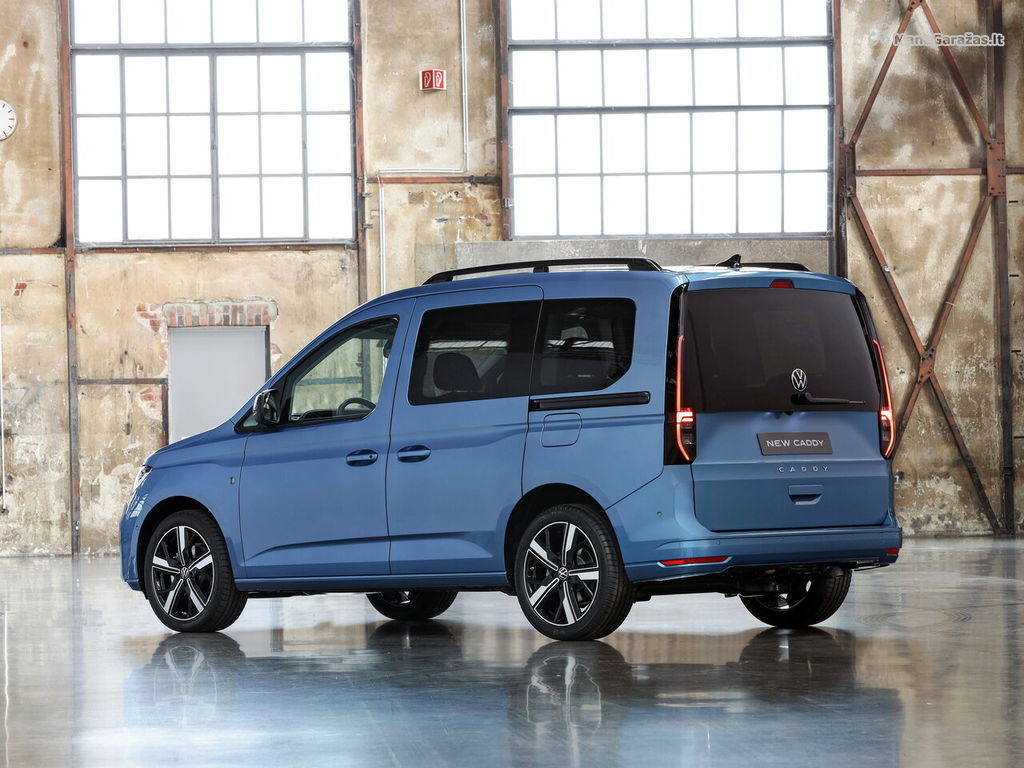

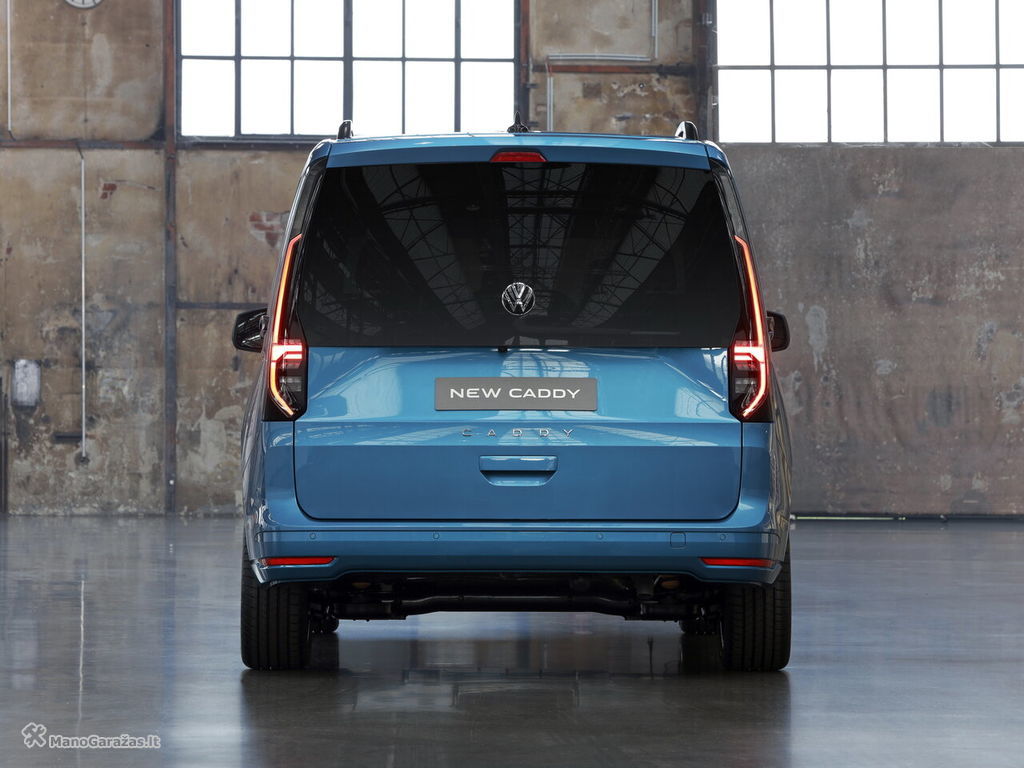

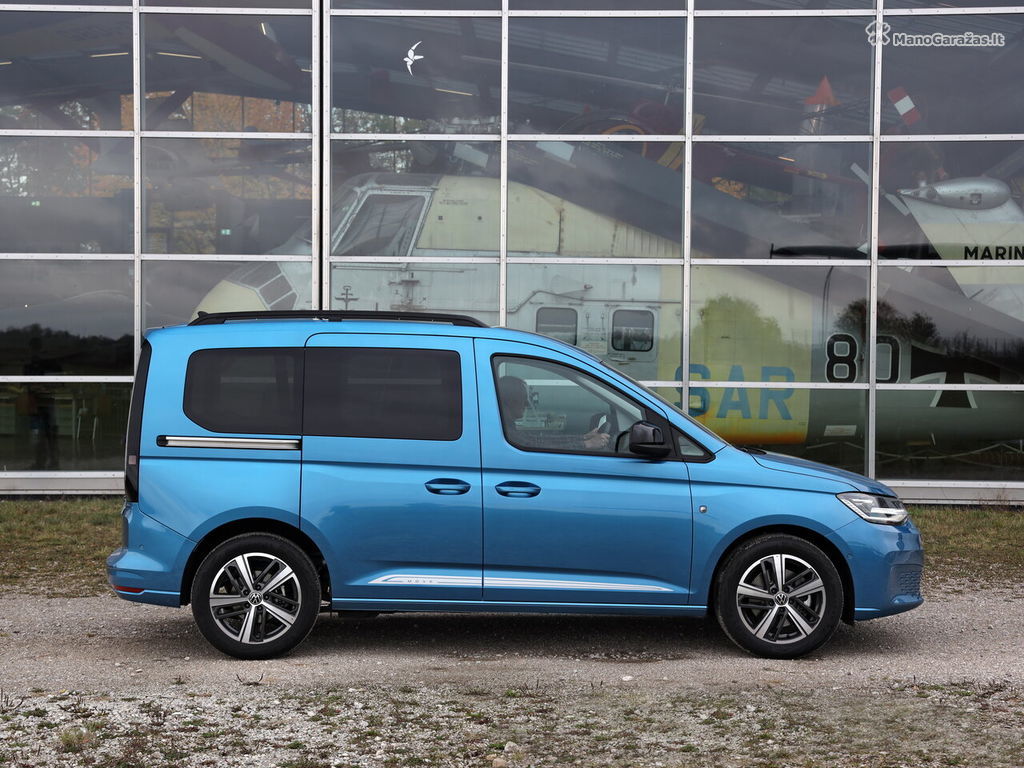

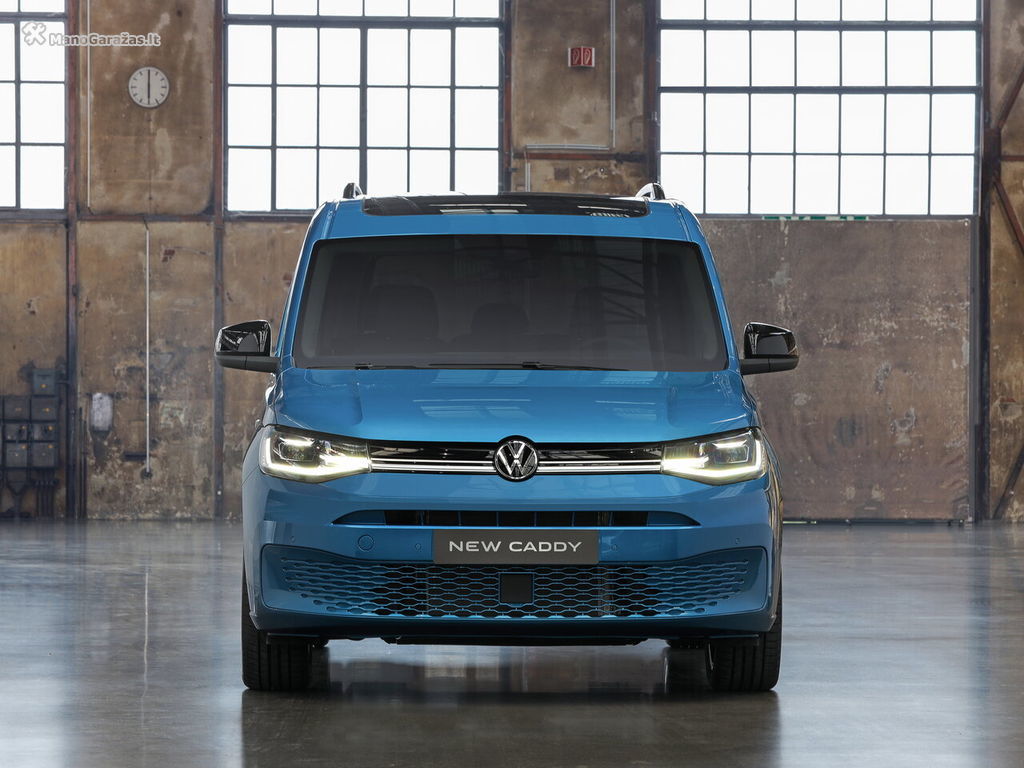

Volkswagen Caddy V · Minivan · from 2020
Volkswagen Caddy 2.0 MT 102 HP
- Power
- 76 hp · 56 kW
- Torque
- 132 Nm
- 0–100 km/h
- 16.8 s
- Top speed
- 156 km/h
- Fuel consumption
- 6.8 l/100 km
- On a full tank
- ~590 km
Other versions of this body · 7
Consumption and performance
- Top speed
- 156 km/h
- Acceleration 0–100 km/h
- 16.8 s
- Fuel tank
- 40 l
Engine
- Engine type
- Diesel
- Engine code
- cd20
- Displacement
- 1,974 cm³
- Max power
- 56 kW / 76 hp
- Torque
- 132 Nm at 2800 rpm
- Fuel system
- Diesel
- Turbo
- Turbo
- Engine position
- In front
- Cylinders
- 4
- Valves per cylinder
- 4
- Valvetrain
- OHC
- Bore
- 84.5 mm
- Stroke
- 88 mm
- Compression ratio
- 18
Transmission
- Drive
- Front
- Gearbox
- Manual
- Gears
- 5
Dimensions and capacity
- Body type
- Hatchback
- Doors
- 3
- Seats
- 5
- Length
- 4,184 mm
- Width
- 1,706 mm
- Height
- 1,442 mm
- Wheelbase
- 2,535 mm
- Front track
- 1,470 mm
- Rear track
- 1,455 mm
- Ground clearance
- 140 mm
- Kerb weight
- 1,145 kg
- Max weight
- 1,630 kg
- Boot space (min)
- 1,000 l
- Boot space (max)
- 340 l
Wheels, brakes and chassis
- Tyre size
- 185/65/R15
- Optional tyre sizes
- 175/65R14, 185/65R14, 195/55R15
- Wheel fitment (PCD, CB)
- DIA59.1 4x100
- Wheel fasteners
- Nuts M12x1.25
- Wheel tightening torque
- 98-118 Nm
- Tyre pressure
- 2.0-2.3 bar
- Front brakes
- Ventilated discs
- Rear brakes
- Discs
- Front suspension
- Independent, coil spring
- Rear suspension
- Semi-independent, coil spring
