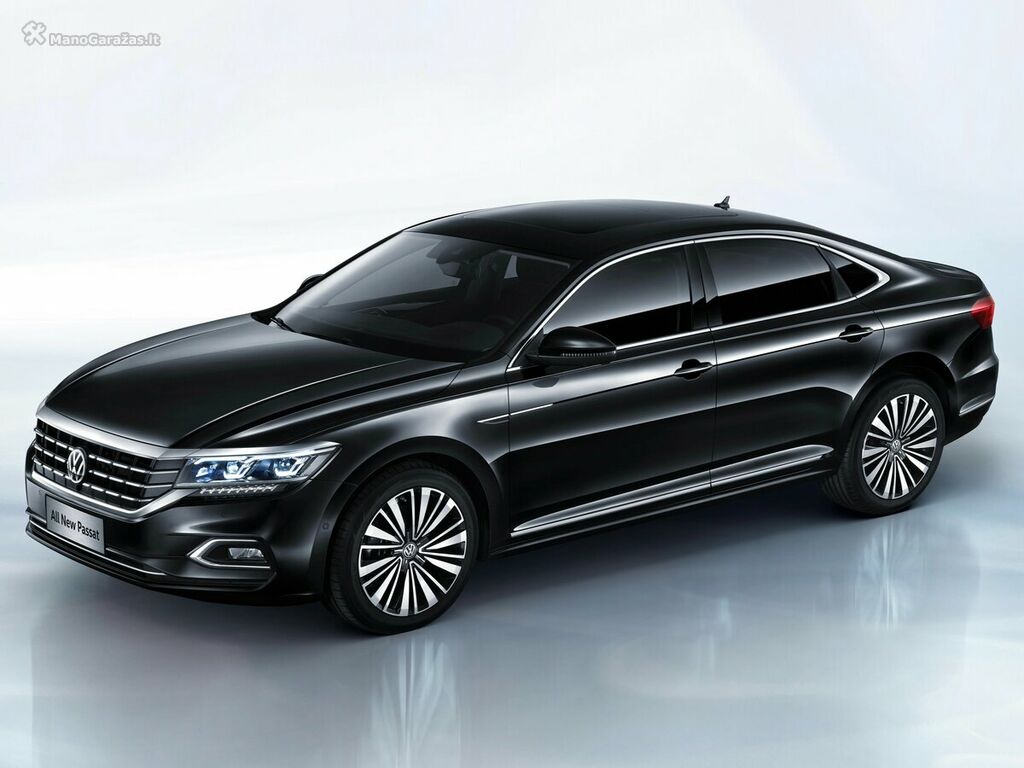

Volkswagen Passat (North America) II (China Market) · Sedan · 2018–2022
Volkswagen Passat (North America) 2.0 AMT 186 HP
- Power
- 71 hp · 52 kW
- Torque
- 103 Nm
- 0–100 km/h
- 15.0 s
- Top speed
- 163 km/h
- Fuel consumption
- 7.4 l/100 km
- On a full tank
- ~740 km
Other versions of this body · 4
Consumption and performance
- Top speed
- 163 km/h
- Acceleration 0–100 km/h
- 15 s
- Fuel tank
- 55 l
Engine
- Engine type
- Gasoline
- Engine code
- F6F
- Displacement
- 1,392 cm³
- Max power
- 52 kW / 71 hp
- Torque
- 103 Nm at 4000 rpm
- Fuel
- A95
- Fuel system
- Mono injection
- Turbo
- No
- Engine position
- In front
- Cylinders
- 4
- Valves per cylinder
- 2
- Valvetrain
- OHC
- Bore
- 77.2 mm
- Stroke
- 74.3 mm
- Compression ratio
- 8.5
Transmission
- Drive
- Front
- Gearbox
- Manual
- Gears
- 5
Dimensions and capacity
- Body type
- Sedan
- Doors
- 4
- Seats
- 5
- Length
- 4,230 mm
- Width
- 1,680 mm
- Height
- 1,350 mm
- Wheelbase
- 2,520 mm
- Front track
- 1,395 mm
- Rear track
- 1,350 mm
- Ground clearance
- 140 mm
- Kerb weight
- 960 kg
- Max weight
- 1,360 kg
Wheels, brakes and chassis
- Tyre size
- 175/70/R13
- Optional tyre sizes
- 185/60R14
- Wheel fitment (PCD, CB)
- DIA63.3 4x108
- Wheel fasteners
- Nuts M12x1.5
- Wheel tightening torque
- 110 Nm
- Tyre pressure
- 1.8-2.0 bar
- Front brakes
- Discs
- Rear brakes
- Drums
- Front suspension
- Independent, coil spring
- Rear suspension
- Independent, coil spring
