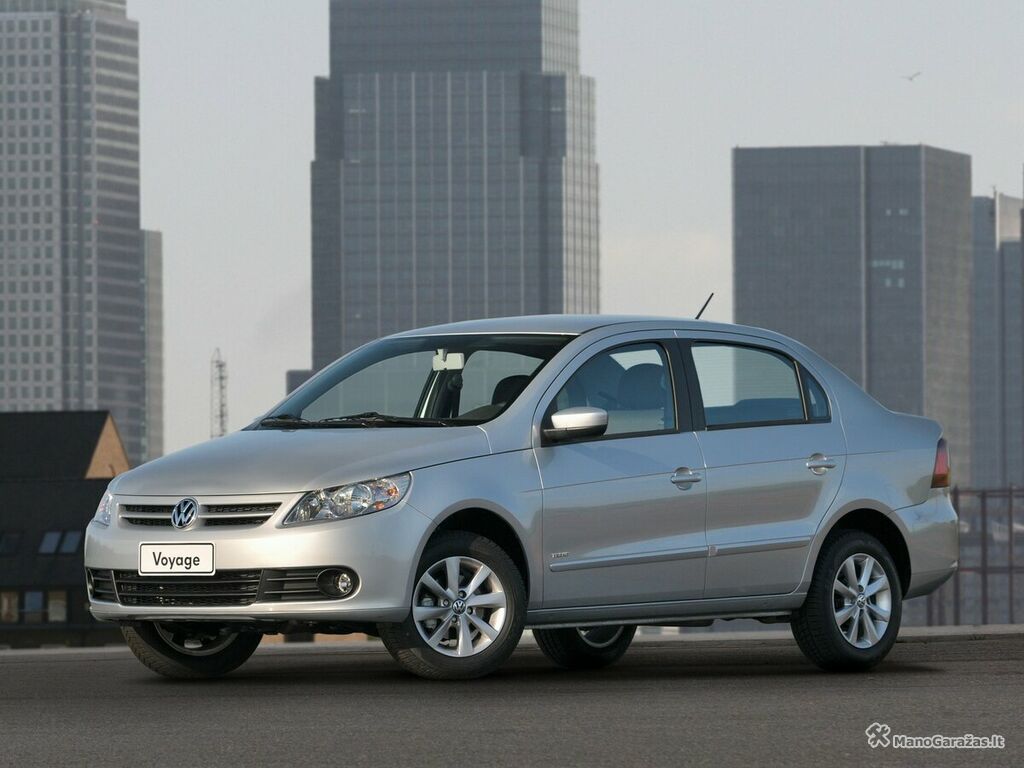

Volkswagen Voyage I · Sedan · 2008–2018
Volkswagen Voyage 1.0 MT 72 HP
- Power
- 75 hp · 55 kW
Other versions of this body · 3
Consumption and performance
- Fuel tank
- 60 l
Engine
- Engine type
- Diesel
- Engine code
- Lynx
- Displacement
- 1,753 cm³
- Max power
- 55 kW / 75 hp
- Fuel system
- Diesel
- Turbo
- Turbo
- Engine position
- In front
- Cylinders
- 4
- Valves per cylinder
- 2
- Valvetrain
- SOHC
- Bore
- 82.25 mm
- Stroke
- 82 mm
- Compression ratio
- 21.5
Transmission
- Drive
- Rear
- Gearbox
- Manual
- Gears
- 5
Dimensions and capacity
- Body type
- Sedan
- Doors
- 4
- Seats
- 5
- Length
- 4,470 mm
- Width
- 1,700 mm
- Height
- 1,410 mm
- Wheelbase
- 2,610 mm
- Front track
- 1,452 mm
- Rear track
- 1,468 mm
- Ground clearance
- 130 mm
Wheels, brakes and chassis
- Optional tyre sizes
- 165/80R13, 185/65R14, 195/60R14, 195/65R14, 195/70R13, 205/50R15
- Wheel fitment (PCD, CB)
- DIA63.4 4x108
- Wheel fasteners
- Nuts M12x1.5
- Tyre pressure
- 1.8-2.3 bar
- Front brakes
- Discs
- Rear brakes
- Drums
- Front suspension
- Independent, coil spring
- Rear suspension
- Independent, coil spring
