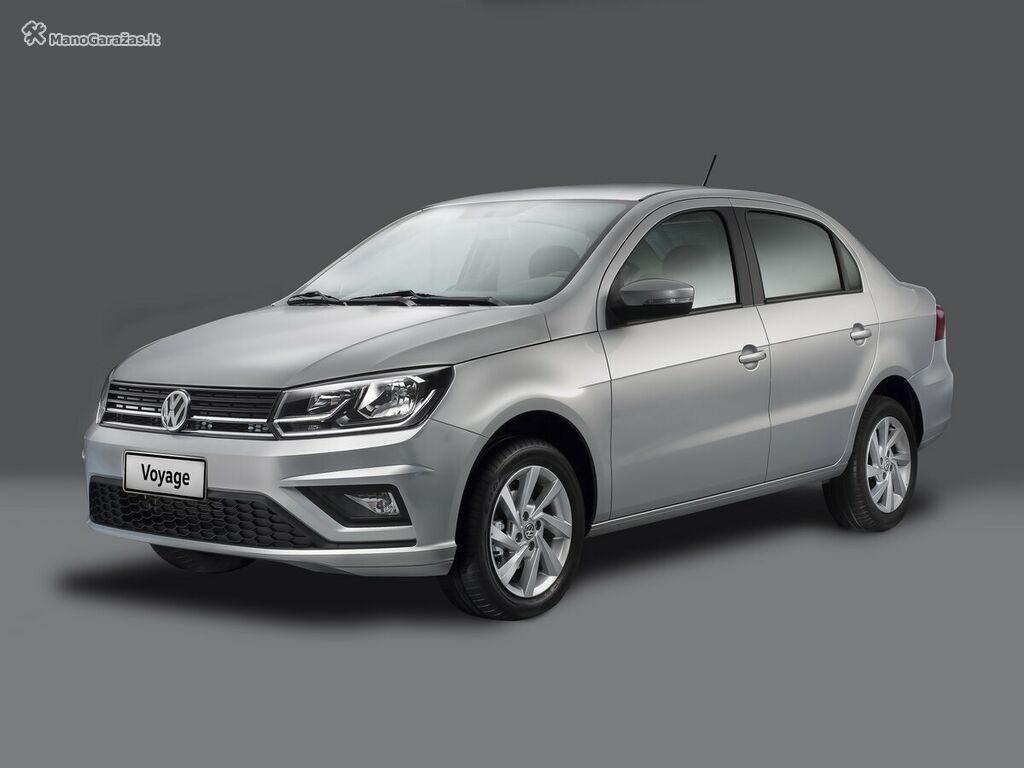

Volkswagen Voyage II · Sedan · 2018–2022
Volkswagen Voyage 1.6 AT 120 HP
- Power
- 80 hp · 59 kW
- Torque
- 115 Nm
- 0–100 km/h
- 14.0 s
- Top speed
- 165 km/h
Other versions of this body · 2
Consumption and performance
- Top speed
- 165 km/h
- Acceleration 0–100 km/h
- 14 s
- Fuel tank
- 60 l
Engine
- Engine type
- Gasoline
- Engine code
- Ford CVH-series
- Displacement
- 1,597 cm³
- Max power
- 59 kW / 80 hp
- Torque
- 115 Nm at 3500 rpm
- Fuel
- A95
- Fuel system
- Mono injection
- Turbo
- No
- Engine position
- In front
- Cylinders
- 4
- Valves per cylinder
- 2
- Valvetrain
- SOHC
- Bore
- 80 mm
- Stroke
- 79.5 mm
- Compression ratio
- 9
Transmission
- Drive
- Rear
- Gearbox
- Manual
- Gears
- 5
Dimensions and capacity
- Body type
- Estate (wagon)
- Doors
- 5
- Seats
- 5
- Length
- 4,510 mm
- Width
- 1,720 mm
- Height
- 1,430 mm
- Wheelbase
- 2,610 mm
- Front track
- 1,452 mm
- Rear track
- 1,468 mm
- Ground clearance
- 130 mm
- Kerb weight
- 1,180 kg
- Boot space (min)
- 430 l
- Boot space (max)
- 1,958 l
- Turning circle
- 10 m
Wheels, brakes and chassis
- Optional tyre sizes
- 165/80R13, 185/65R14, 195/60R14, 195/65R14, 195/70R13, 205/50R15
- Wheel fitment (PCD, CB)
- DIA63.4 4x108
- Wheel fasteners
- Nuts M12x1.5
- Tyre pressure
- 1.8-2.3 bar
- Front brakes
- Discs
- Rear brakes
- Drums
- Front suspension
- Independent, coil spring
- Rear suspension
- Independent, coil spring
