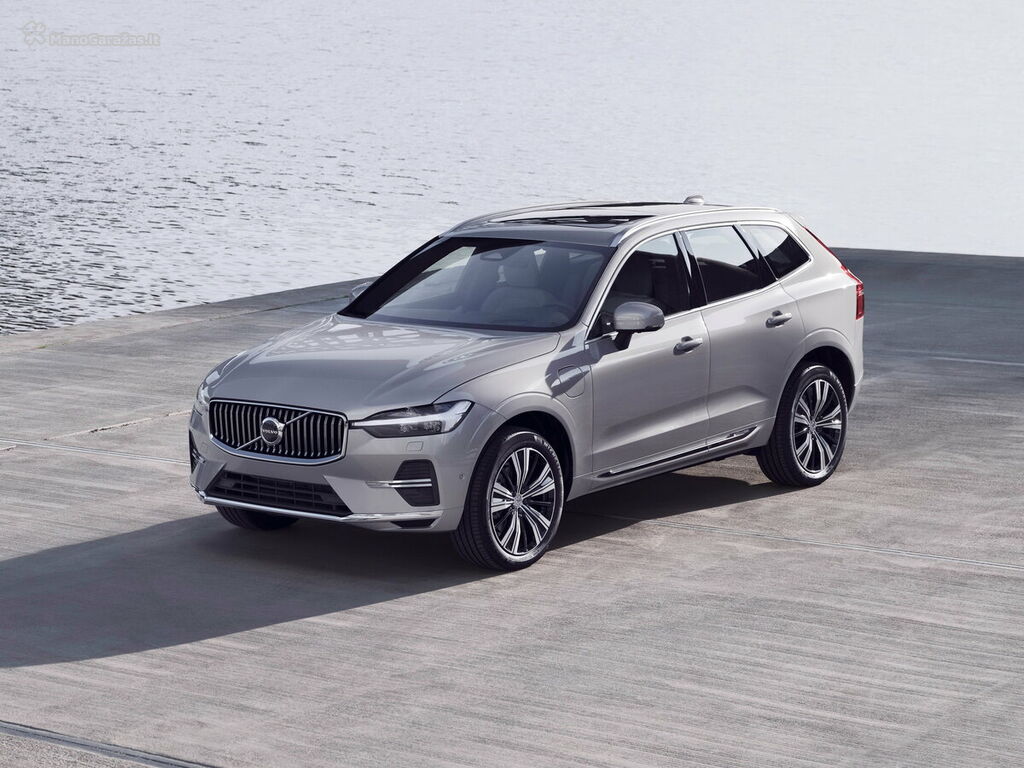

Volvo XC60 II Facelift SUV 5 doors All photos (8)
Volvo XC60 II Facelift · SUV 5 doors · 2021–2025

Volvo XC60 Recharge 2.0 AT 408 HP AWD

GasolineManual, 6 gearsFront driveEuro 5
Power
170 hp · 125 kW
Torque
260 Nm
0–100 km/h
9.2 s
Top speed
220 km/h
Fuel consumption
5.9 l/100 km
On a full tank
~1,190 km
Other versions of this body · 14
Recharge 2.0 AT 341 HP AWD Recharge 2.0 AT 350 HP AWD Recharge 2.0 AT 392 HP AWD Recharge 2.0 AT 398 HP AWD Recharge 2.0 AT 408 HP AWD Recharge 2.0 AT 455 HP AWD All versions →

Consumption and performance

manufacturer data
Top speed
220 km/h
Acceleration 0–100 km/h
9.2 s
Fuel tank
70 l

Engine

A16XHT · 1,598 cm³
Engine type
Gasoline
Engine code
A16XHT
Displacement
1,598 cm³
Max power
125 kW / 170 hp
Torque
260 Nm at 1650 rpm
Fuel
A95
Fuel system
Multipoint injection
Turbo
Turbo
Engine position
In front
Cylinders
4
Valves per cylinder
4
Valvetrain
DOHC
Bore
79 mm
Stroke
81.5 mm
Compression ratio
10.5
Emission standard
Euro 5

Transmission

Drive
Front
Gearbox
Manual
Gears
6

Dimensions and capacity

class D
Body type
Sedan
Doors
4
Seats
5
Length
4,842 mm
Width
1,856 mm
Height
1,498 mm
Wheelbase
2,737 mm
Front track
1,587 mm
Rear track
1,590 mm
Ground clearance
160 mm
Kerb weight
1,571 kg
Max weight
2,110 kg
Boot space (min)
500 l
Boot space (max)
1,015 l
Turning circle
10.8 m

Wheels, brakes and chassis

Tyre size
215/60/R16 225/50/R17 225/55/R17 245/45/R18 245/40/R
Wheel fitment (PCD, CB)
DIA67.1 5x120
Front brakes
Ventilated discs
Rear brakes
Discs
Front suspension
Independent, coil spring
Rear suspension
Independent, coil spring
