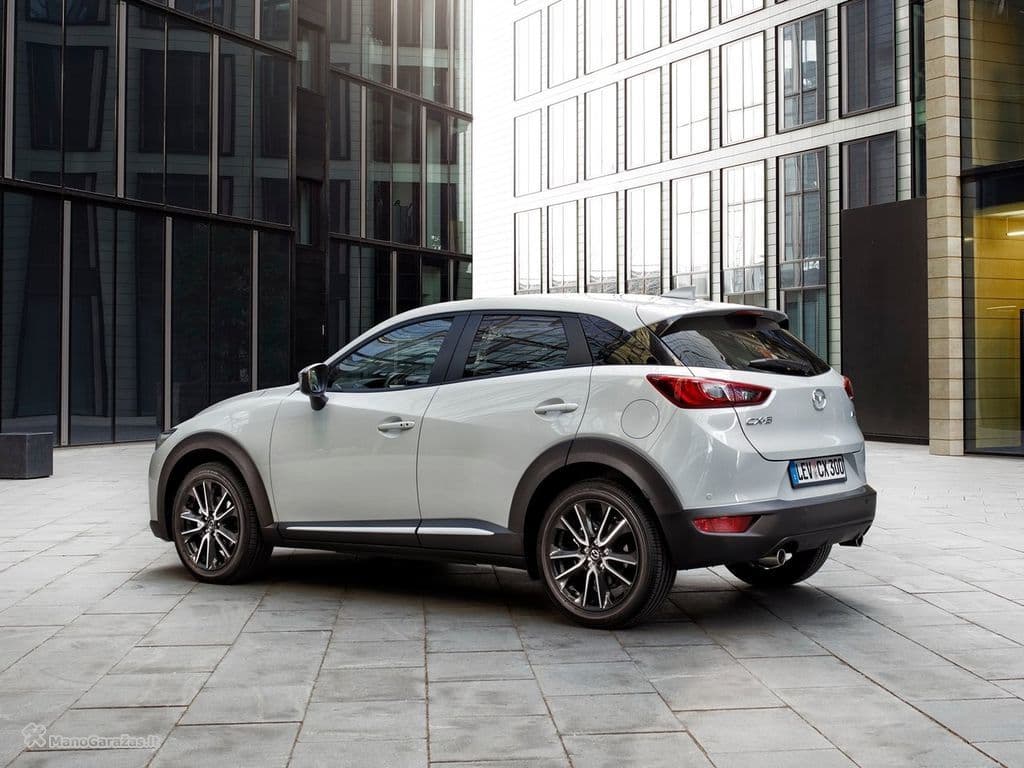

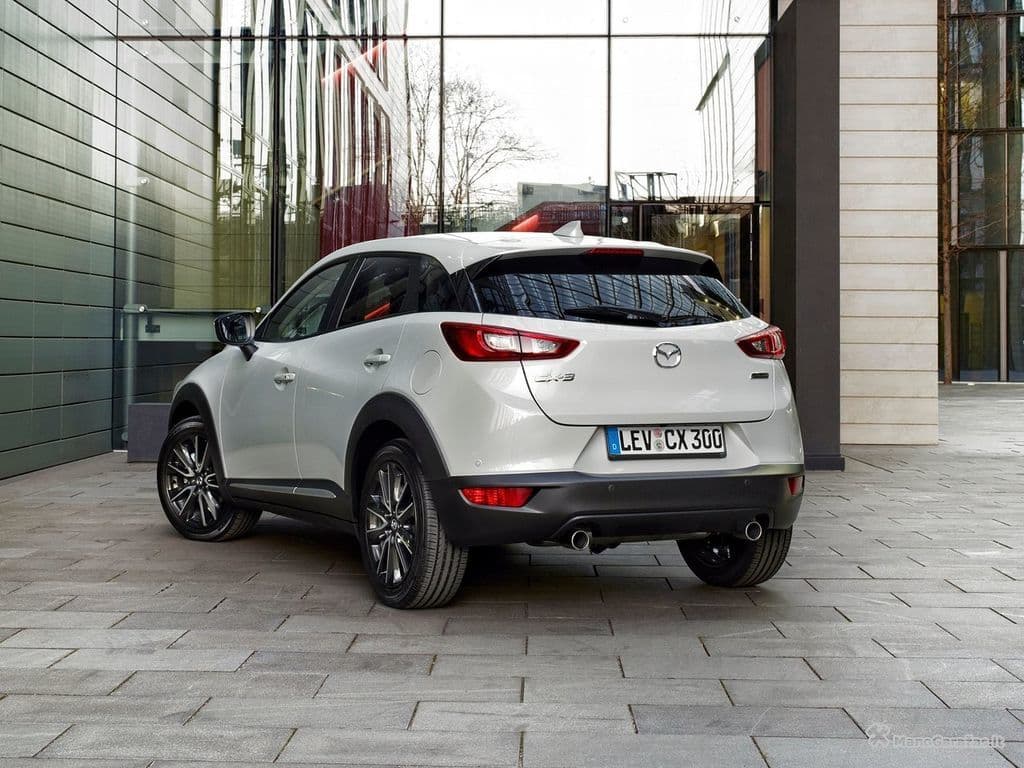

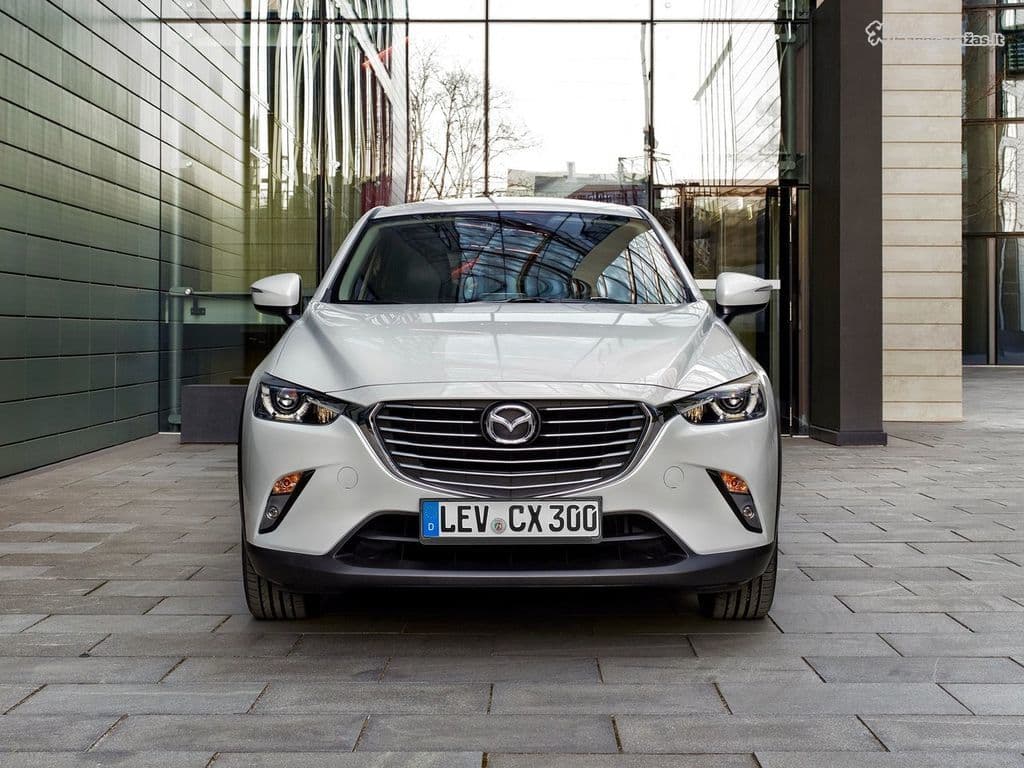

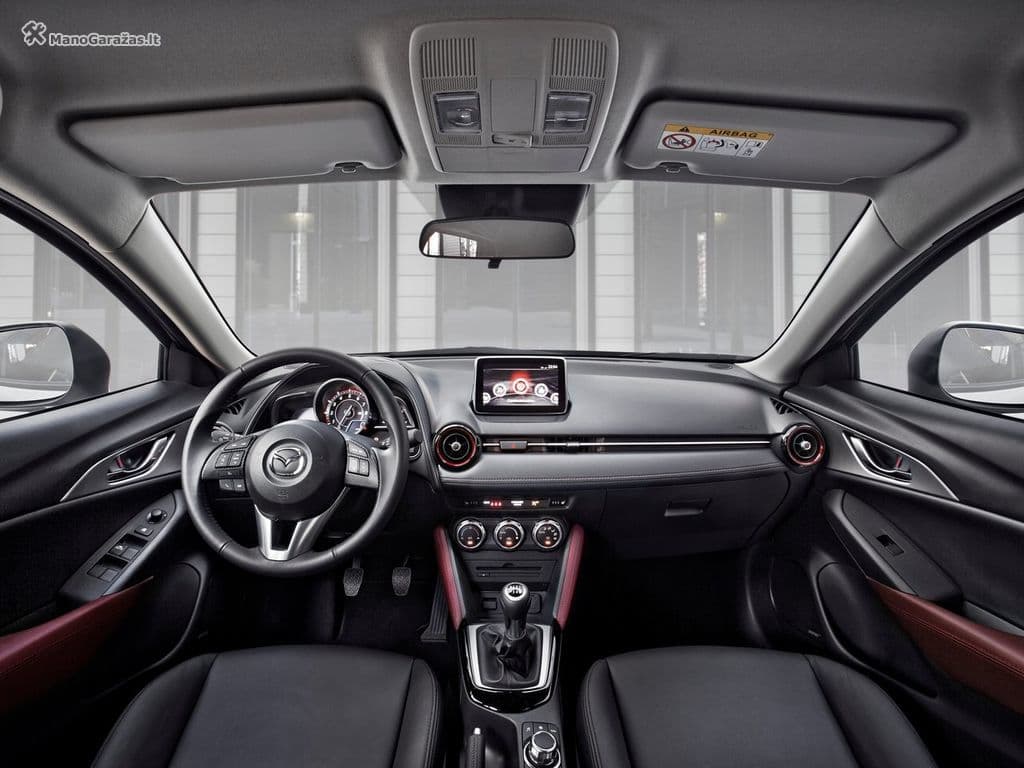

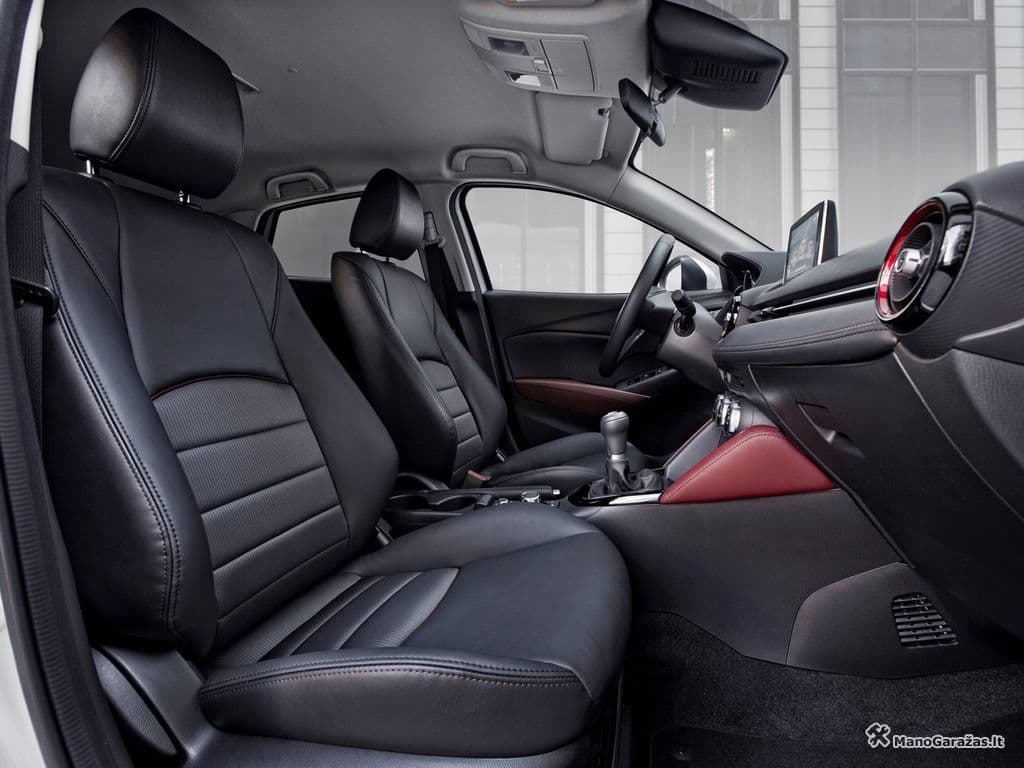

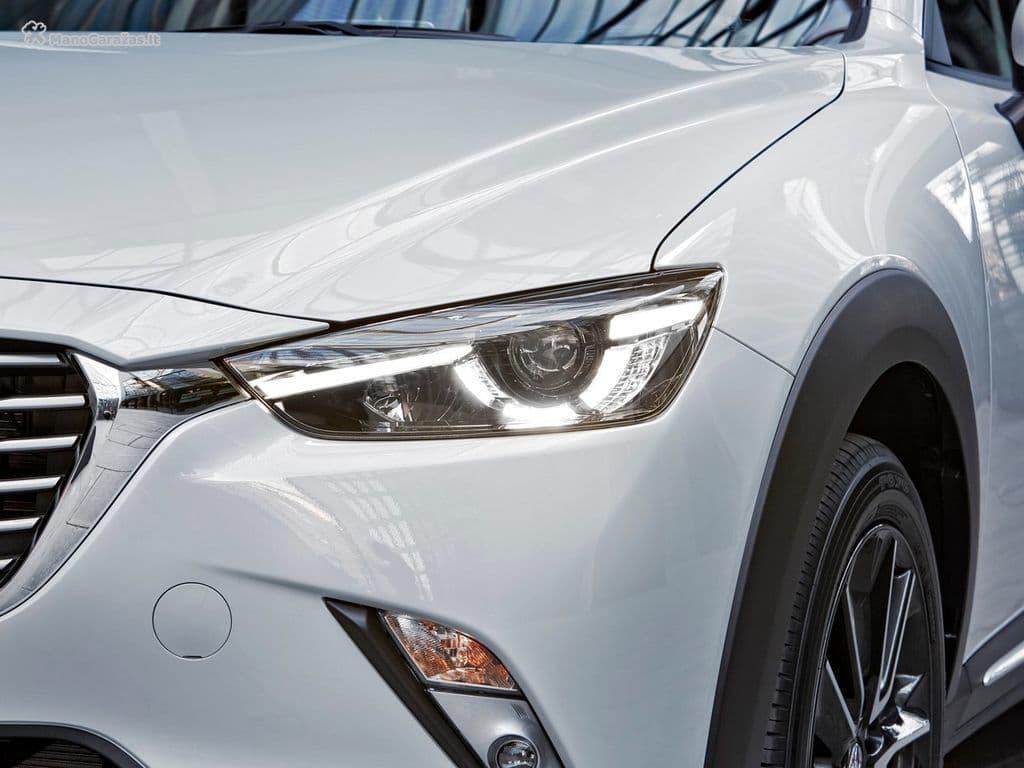

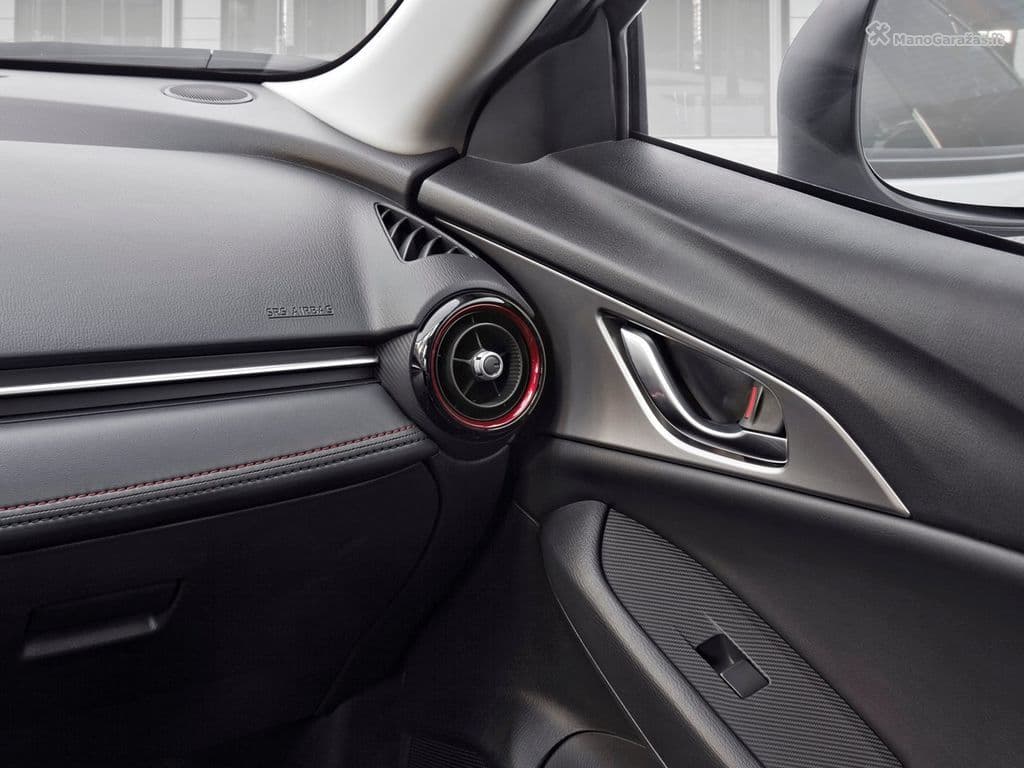

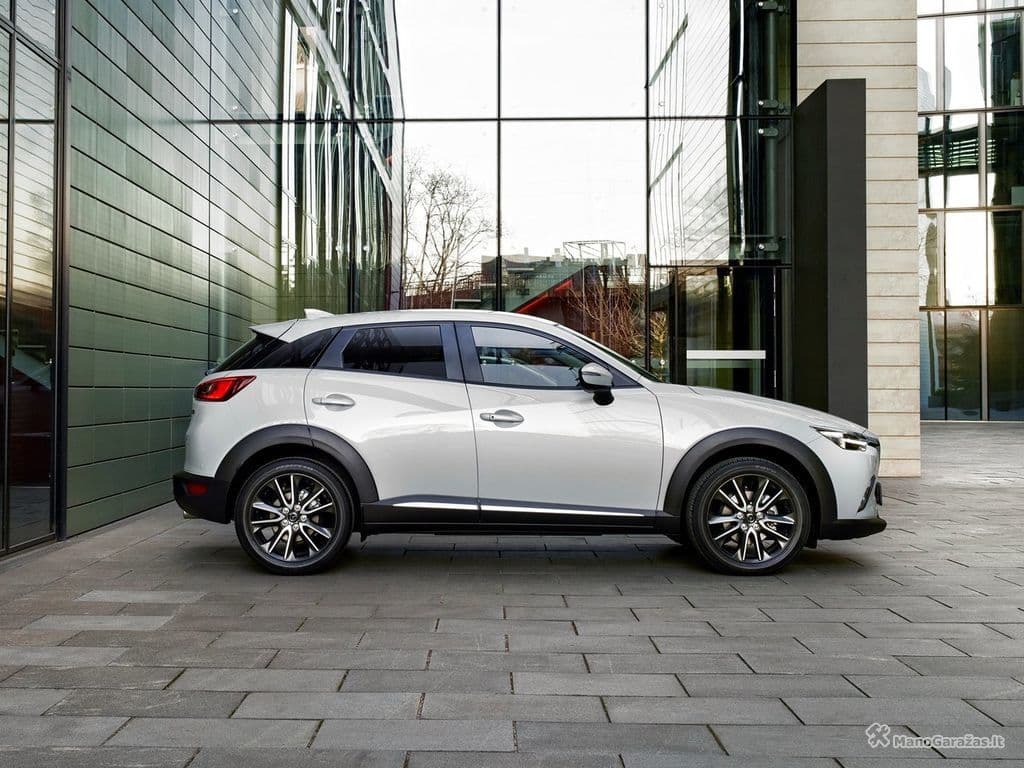

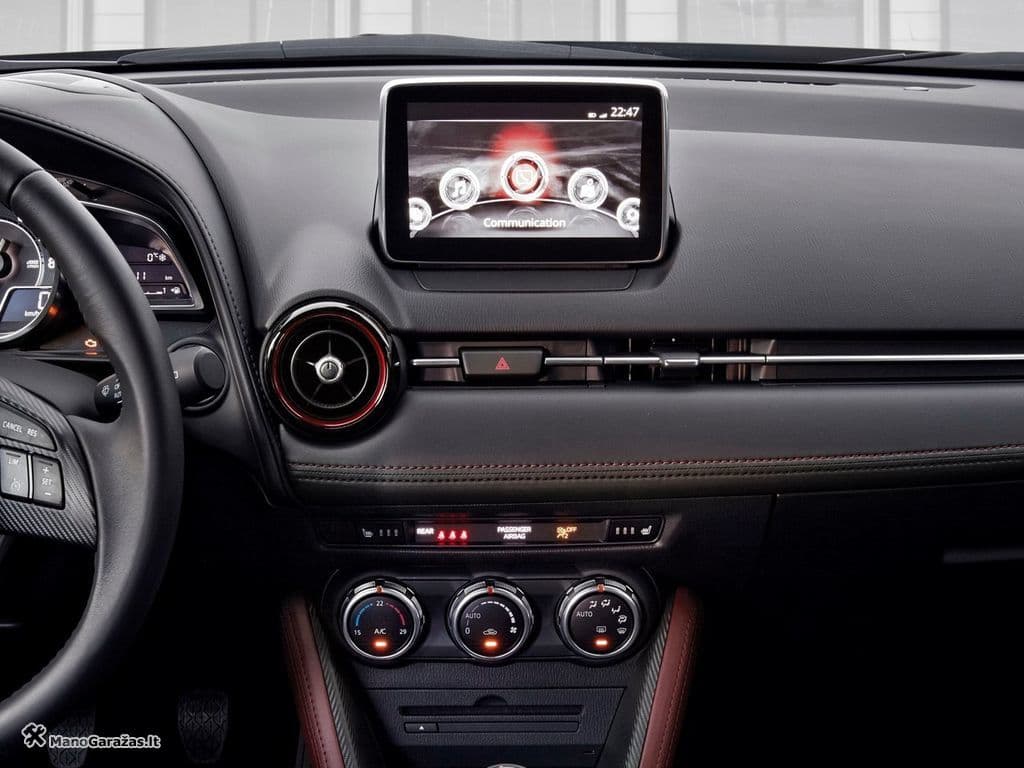

Mazda CX-3 I SUV 5 doors All photos (18)
Mazda CX-3 I · SUV 5 doors · 2015–2018

Mazda CX-3 1.5 MT 105 HP

GasolineManual, 5 gearsFront drive
Power
103 hp · 76 kW
Torque
127 Nm
0–100 km/h
10.7 s
Top speed
185 km/h
Fuel consumption
6.5 l/100 km
Other versions of this body · 10
1.5 AT 105 HP 1.5 AT 105 HP AWD 1.5 MT 105 HP 1.5 MT 105 HP AWD 2.0 AT 120 HP 2.0 AT 150 HP All versions →

Consumption and performance

manufacturer data
Top speed
185 km/h
Acceleration 0–100 km/h
10.7 s

Engine

14K4F · 1,396 cm³
Engine type
Gasoline
Engine code
14K4F
Displacement
1,396 cm³
Max power
76 kW / 103 hp
Torque
127 Nm at 3000 rpm
Fuel
A98
Fuel system
Multipoint injection
Turbo
No
Engine position
In front
Cylinders
4
Valves per cylinder
4
Valvetrain
DOHC
Bore
75 mm
Stroke
79 mm
Compression ratio
10

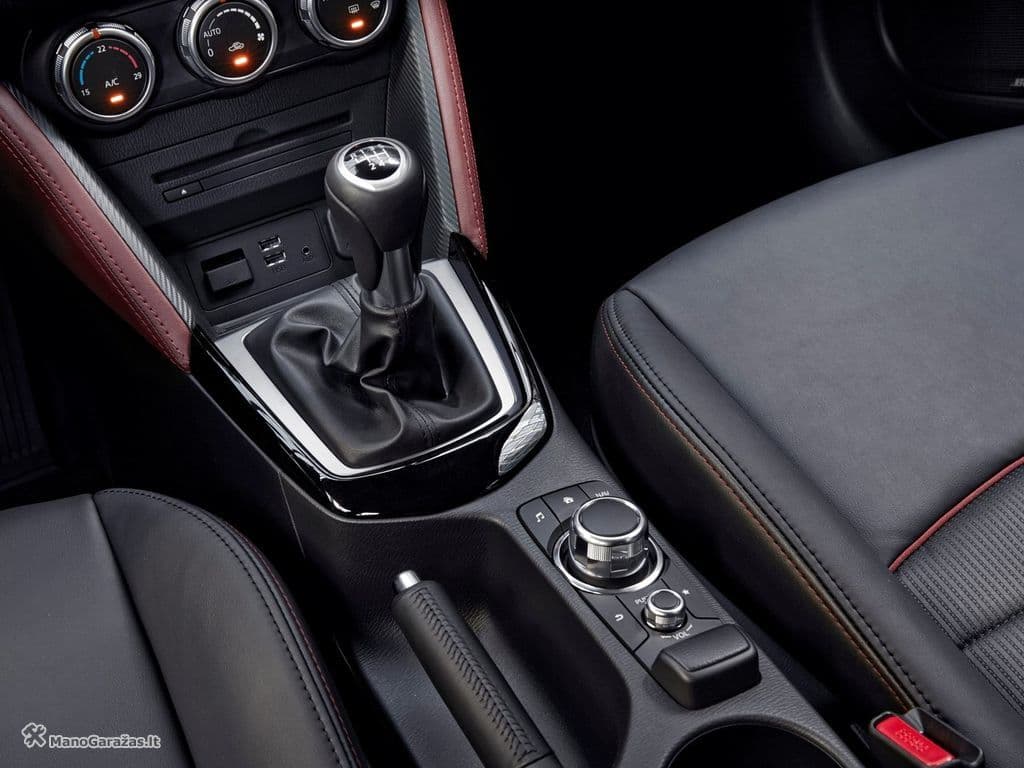

Transmission

Drive
Front
Gearbox
Manual
Gears
5

Dimensions and capacity

class C
Body type
Hatchback
Doors
5
Seats
5
Length
4,220 mm
Width
1,680 mm
Height
1,390 mm
Wheelbase
2,550 mm
Front track
1,475 mm
Rear track
1,470 mm
Ground clearance
150 mm

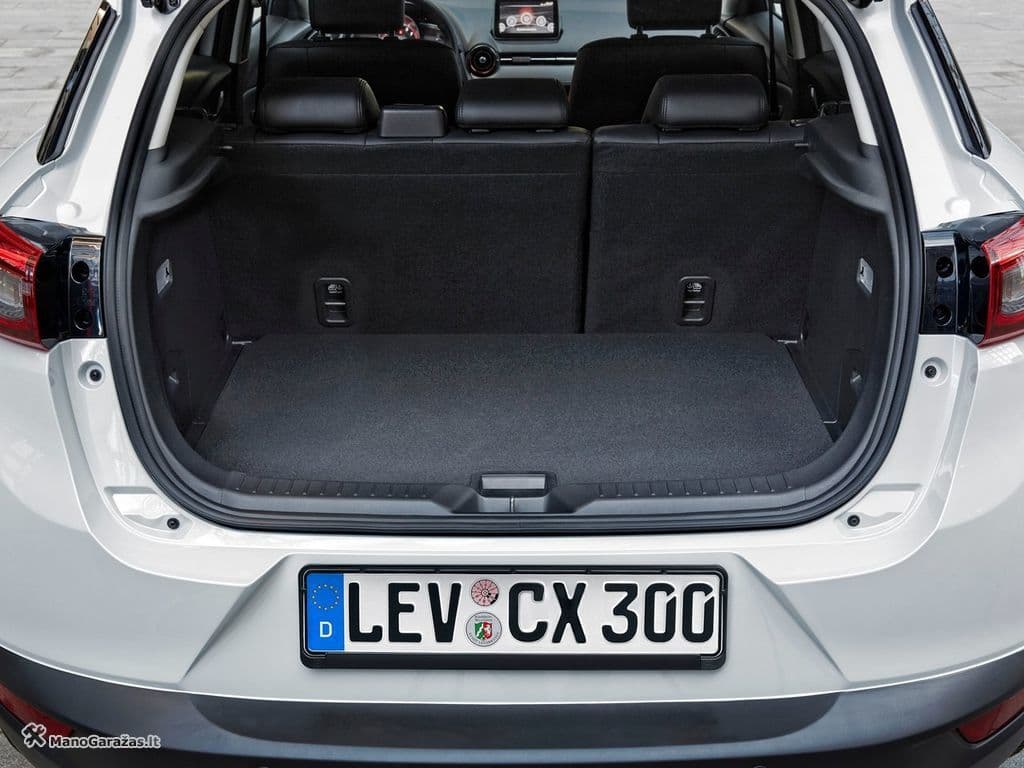

Boot space (min)
352 l
Boot space (max)
1,210 l

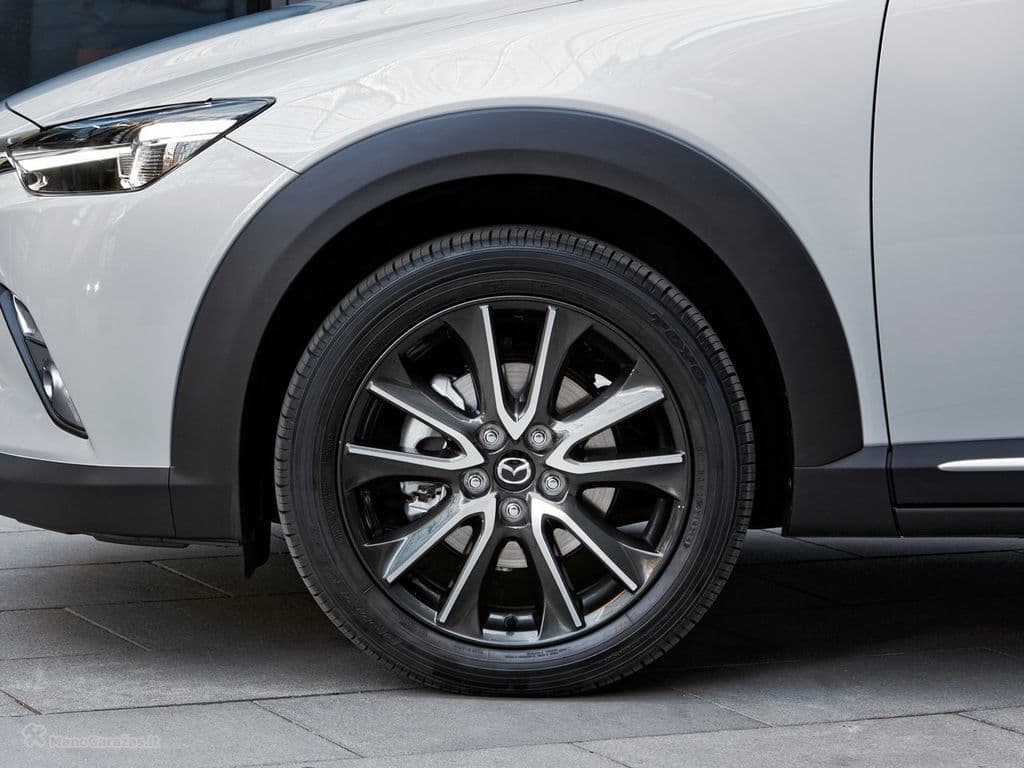

Wheels, brakes and chassis

Optional tyre sizes
175/65R14, 175/70R14, 185/55R15, 185/60R14, 195/55R15
Wheel fitment (PCD, CB)
DIA56.1 4x100
Wheel fasteners
Nuts M12x1.5
Tyre pressure
2.1 bar
Front brakes
Ventilated discs
Front suspension
Independent, coil spring
